REGIA MARINA (ITALY)

TORPEDO SHIPS

1PN (series I) torpedo boats (1911-1913)

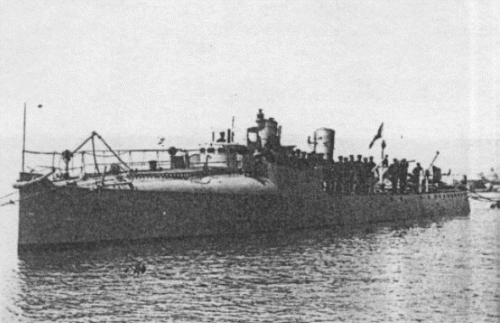

1PN 1912

Name No Yard No Builder Laid down Launched Comp Fate
1PN     Pattison, Napoli 2.1910 18.1.1911 6.1911 stricken 2.1925
2PN     Pattison, Napoli 2.1910 3.2.1911 7.1911 stricken 7.1929
3PN     Pattison, Napoli 2.1910 24.4.1911 8.1911 stricken 11.1928
4PN     Pattison, Napoli 2.1910 29.6.1911 9.1911 stricken 3.1928
5PN     Pattison, Napoli 2.1910 5.9.1911 10.1911 sunk 27.6.1915
6PN     Pattison, Napoli 2.1910 6.11.1911 1.1912 stricken 2.1925
7PN     Pattison, Napoli 3.1911 18.4.1912 8.1912 stricken 2.1932
8PN     Pattison, Napoli 3.1911 14.5.1912 8.1912 stricken 2.1925
9PN     Pattison, Napoli 6.1911 26.7.1912 10.1912 stricken 2.1932
10PN     Pattison, Napoli 9.1911 18.9.1912 12.1912 stricken 2.1925
11PN     Pattison, Napoli 11.1911 21.11.1912 3.1913 stricken 2.1925
12PN     Pattison, Napoli 2.1912 1.1.1913 4.1913 stricken 2.1932
13OS     Odero, Sestri Ponente 11.1910 16.11.1911 3.1912 stricken 12.1927
14OS     Odero, Sestri Ponente 11.1910 5.12.1911 4.1912 stricken 2.1925
15OS     Odero, Sestri Ponente 11.1910 27.1.1912 5.1912 stricken 6.1930
16OS     Odero, Sestri Ponente 11.1910 28.3.1912 6.1912 stricken 4.1929
17OS     Odero, Sestri Ponente 12.1910 16.4.1912 7.1912 sunk 3.7.1915
18OS     Odero, Sestri Ponente 12.1910 7.5.1912 7.1912 stricken 3.1927
19OS     Odero, Sestri Ponente 12.1910 8.6.1912 8.1912 stricken 2.1930
20OS     Odero, Sestri Ponente 1.1911 29.6.1912 1.1913 stricken 2.1925
21OS     Odero, Sestri Ponente 1.1911 25.7.1912 1.1913 stricken 2.1925
22OS     Odero, Sestri Ponente 2.1911 17.8.1912 12.1912 stricken 2.1925
23OS     Odero, Sestri Ponente 3.1911 12.9.1912 3.1913 stricken 4.1925
24OS     Odero, Sestri Ponente 3.1911 13.9.1912 3.1913 stricken 12.1927
25AS     Ansaldo, Sestri Ponente 1.1911 15.5.1912 11.1912 stricken 11.1925
26AS     Ansaldo, Sestri Ponente 1.1911 6.7.1912 3.1913 stricken 9.1928
27AS     Ansaldo, Sestri Ponente 1.1911 5.8.1912 1.1913 stricken 2.1925
28AS     Ansaldo, Sestri Ponente 2.1911 17.8.1912 1.1913 stricken 2.1925
29AS     Ansaldo, Sestri Ponente 2.1911 14.9.1912 2.1913 stricken 2.1932
30AS     Ansaldo, Sestri Ponente 2.1911 12.10.1912 3.1913 stricken 2.1925
31AS     Ansaldo, Sestri Ponente 4.1911 4.1.1913 7.1915 stricken 1.1923
32AS     Ansaldo, Sestri Ponente 4.1911 17.6.1913 8.1914 stricken 1.1923
33PN     Pattison, Napoli 8.1912 2.5.1913 7.1913 stricken 2.1931
34PN     Pattison, Napoli 8.1912 1.5.1913 7.1913 stricken 2.1932
35PN     Pattison, Napoli 10.1912 22.5.1913 8.1913 stricken 2.1932
36PN     Pattison, Napoli 12.1912 7.6.1913 9.1913 sunk 10.11.1918
37PN     Pattison, Napoli 3.1913 29.7.1913 10.1913 stricken 2.1925
38PN     Pattison, Napoli 3.1913 25.8.1913 12.1913 stricken 2.1932



Displacement normal, t

120

Displacement full, t

 134 - 143

Length, m

42.5

Breadth, m

4.60

Draught, m

1.40 - 1.50

No of shafts

2

31AS: 3

Machinery

2 VTE, 2 Thornycroft boilers

31AS: 3 Parsons steam turbines, 2 Thornycroft boilers

32AS: 2 Bergmann steam turbines, 2 Thornycroft boilers

Power, h. p.

3200

Max speed, kts

27

Fuel, t

oil 16
Endurance, nm(kts) 175(27)

Armament

1 x 1 - 57/43 N1887, 2 x 1 - 450 TT

Complement

23 - 30

Project history: Torpedo boats, as a whole were considered rather successful (with reference to Adriactic Sea theatre) ships. 31AS and 32AS instead of steam engines were equipped with turbines, but have appeared more expensive and less reliable.

Modernizations: 1915 - 1916, 1PN - 4PN, 7PN, 8PN, 26AS - 30AS: + (8 - 10) mines

1916 - 1918, all survived but 6PN: - 1 x 1 - 57/43; + 1 x 1 - 76/40 A1916, 1 x 1 - 76/30 A1914, 1 x 1 - 6.5/80

1916 - 1918, 6PN: - 1 x 1 - 57/43; + 1 x 1 - 76/40 A1916, 1 x 1 - 76/30 A1914

Naval service: 5PN was sunk 27.6.1915 by German submarine UB1 (Austrian U10) off Venice, 17OS was sunk 3.7.1915 from explosion of own mine near Istrian coast and 36PN 10.11.1918 was mined near Albanian coast.

8PN 1912
