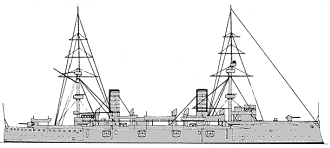

Carlo Alberto 1898
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Carlo Alberto, 4.1918- Zenson | R. Arsenale di La Spezia | 1.2.1892 | 23.9.1896 | 1.5.1898 | TS 1907-1910, troop transport 4.1918, discarded 6.1920 | ||
| Vettor Pisani | R. Arsenale di La Spezia | 7.12.1892 | 14.8.1895 | 1.4.1899 | repair ship 11.1916-11/1918, discarded 1.1920 |
|
Displacement normal, t |
Carlo Alberto: 6397 Vettor Pisani: 6614 |
|
Displacement full, t |
Carlo Alberto: 7057 Vettor Pisani: 7128 |
|
Length, m |
99.0 pp 105.7 oa |
|
Breadth, m |
18.0 |
|
Draught, m |
7.20 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 8 cylindrical boilers |
|
Power, h. p. |
Carlo Alberto: 13219 Vettor Pisani: 13259 |
|
Max speed, kts |
Carlo Alberto: 19.1 Vettor Pisani: 18.6 |
|
Fuel, t |
coal 600 + oil 120 |
|
Endurance, nm(kts) |
5400(10) |
|
Armour, mm |
Harvey; belt: 150, deck: 37, gunshields: 50, casemates: 150, CT: 150 |
|
Armament |
Carlo Alberto: 12 x 1 - 152/40 A91, 6 x 1 - 120/40 A91, 2 x 1 - 75/21 Uchatius 29cwt No1, 14 x 1 - 57/40 H, 6 x 1 - 37/25 H lungo, 2 x 1 - 11.4/94, 4 - 450 TT (beam) Vettor Pisani: 12 x 1 - 152/40 A91, 4 x 1 - 120/40 A91, 2 x 1 - 75/21 Uchatius 29cwt No1, 14 x 1 - 57/40 H, 8 x 1 - 37/25 H lungo, 2 x 1 - 11.4/94, 4 - 450 TT (beam) |
|
Complement |
486 |
Project history: Good ships, but deficient in heavy armament. Carlo Alberto which could be distinguished from her sister by the presence of a mainmast, was used from 1902 for Marconi's first long range radio experiments at sea. Both vessels were designed by Eng Insp Edoardo Masdea.
Ship protection: 150mm belt protected full ship length and casemate, it was closed by 37mm deck.
Modernizations: None.
Naval service: In 1907-10 Carlo Alberto served as a TS for torpedo ratings and gunners, and in 1917 she began conversion, in Venice NYd, to a troop transport, the work being completed in 1917-18 in Taranto NYd. From 4.4.1918 she was renamed Zenson, being recommissioned on the same day. Vettor Pisani was used as repair ship from 1.11.1916 to 27.11.1918.
© Ivan Gogin, 2014
