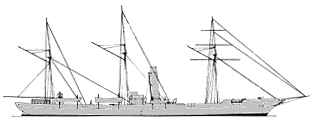

Staffetta 1880
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Staffetta | Ansaldo, Sampierdarena | 8/1873 | 24.6.1876 | 12/1877 | survey vessel 1903 |
|
Displacement normal, t |
1366 |
|
Displacement full, t |
1777 |
|
Length, m |
77.1 pp 85.6 oa |
|
Breadth, m |
9.43 |
|
Draught, m |
3.97 |
|
No of shafts |
1 |
|
Machinery |
1 HDE, 2 cylindrical boilers |
|
Power, h. p. |
1700 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
coal 420 |
| Endurance, nm(kts) | 2030(9) |
|
Armament |
4 x 1 - 120/20 Armstrong 1.26ton BLR, 1 - 350 TT (beam) |
|
Complement |
144 |
Project history: This iron-hulled, barquentine-rigged vessel was designed by Eng Director Guglielmo Pucci. Her machinery was that previously built for the Cristoforo Colombo.
Modernizations: 1897: + 4 x 1 - 57/43 N
Naval service: In 1900-03 she was converted to a surveying ship, with 4-57mm/43 only. Discarded 19.7.1914.
© Ivan Gogin, 2014
