very similar Flavio Gioia 1883
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Amerigo Vespucci | Arsenale di Venezia | 9.12.1879 | 31.7.1882 | 1.9.1884 | TS 1893, discarded 12.1928 |
|
Displacement normal, t |
2493 |
|
Displacement full, t |
2751 |
|
Length, m |
78.0 pp 84.5 oa |
|
Breadth, m |
12.8 |
|
Draught, m |
5.48 |
|
No of shafts |
1 |
|
Machinery |
1 HR, 8 boilers |
|
Power, h. p. |
3000 |
|
Max speed, kts |
13 |
|
Fuel, t |
coal 500 |
| Endurance, nm(kts) | 10000 |
| Armour, mm | deck: ? |
|
Armament |
8 x 1 - 149/27 B, 3 x 1 - 75/21 Uchatius 29cwt BL No1, 4 x 1 - 11.4/94 |
|
Complement |
268 |

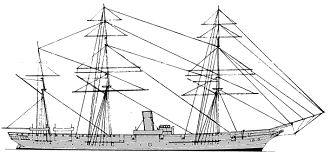

Project history: Barque-rigged steel corvette designed by Carlo Vigna.
Ship protection: There was a sloping protective deck and cellular layer.
Modernizations: 1893, new armament consisted of 4 x 1 - 120/40 A91, 4 x 1 - 57/40 H, 2 x 1 - 37/20 H corto, 2 - 350 TT
1910s: new armament consisted of: 4 x 1 - 76/40 A, 2 x 1 - 6.5/115
Naval service: In 1893 Amerigo Vespucci was converted to TS.
