FRANCESCO MAZZINGHI Coast Guard patrol boats (1991-1992)

Name No Yard No Builder Laid down Launched Comm Fate
Francesco Mazzinghi CP405   Bacino di Carenaggio, Trapani     1991 in service (2019)
Antonio Scialoja CP406   Bacino di Carenaggio, Trapani     1991 in service (2019)
Michele Lolini CP407   Bacino di Carenaggio, Trapani     1991 in service (2019)
Mario Grabar CP408   Bacino di Carenaggio, Trapani     1992 in service (2019)



Displacement standard, t



Displacement full, t

136

Length, m

29.5

Breadth, m

6.70

Draught, m

1.83

No of shafts

2

Machinery

4 CEM 12D/SS diesels

Power, h. p.

5500

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

1000

Armament

2 x 1 - 7.6/90

Electronic equipment

2x Decca radars

Complement

16 + 50 rescuees



Project history: Steel hull with light alloy superstructure. No "daughter boat" rescue craft. Have two water cannon for fire fighting.

Modernizations: 1999, Francesco Mazzinghi, Antonio Scialoja; 2000, Michele Lolini; 2001, Mario Grabar: new superstructure, diesels were replaced by 4 Isotta-Fraschini ID36 SS8V diesels (6500hp)

Naval service: No significant events.

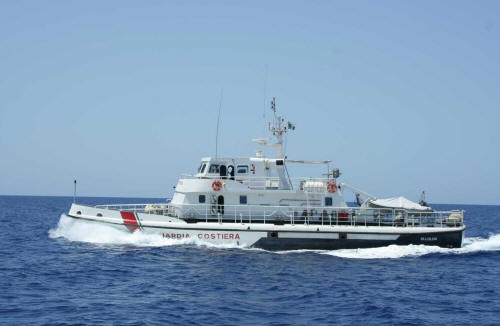

Michele Lolini
