GIULIO INGIANNI Coast Guard patrol craft (1992)

Name No Yard No Builder Laid down Launched Comm Fate
Giulio Ingianni CP409   CNR, Ancona     13.6.1992 in service (2019)



Displacement standard, t

180

Displacement full, t

205

Length, m

34.6

Breadth, m

7.10

Draught, m

2.10

No of shafts

2

Machinery

2 Isotta-Fraschini ID 36 V200 diesels

Power, h. p.

5820

Max speed, kts

22

Fuel, t

diesel oil

Endurance, nm(kts)

1000(18)

Armament

1 x 1 - 20/70 Mk 4, 2 x 1 - 7.6/90

Electronic equipment

Decca 20V90, Decca 2050/6 radars

Complement

13



Project history: Ordered in 1991. Steel hull with light alloy superstructure. Carries a US-made Boston Whaler Outrage-19 5.8m launch powered by two 60hp Yamaha out-boards. Has an electrohydraulic telescoping crane to assist in recovery, a firefighting water monitor on the mast platform, and a stern wedge to improve speed and fuel economy. Equipped with Vosper fin stabilizers.

Modernizations: None.

Naval service: No significant events.

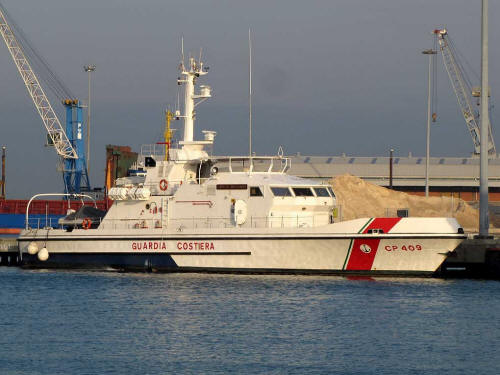

Giulio Ingianni
