MAS3 1916
MAS15 1916
|
Names |
MAS3 - 21 MAS22, 2.1921- MAS16 |
|
Builders |
SVAN, Venezia: MAS3-22 |
|
Completed |
1916: MAS3 - 10, 12 - 22 1917: MAS11 |
|
Losses |
MAS3 (20.11.1917), MAS7 (4.11.1916), MAS10 (17.3.1918), MAS14 (5.2.1918), MAS16 (18.12.1917) |
|
Transfers |
none |
|
Discarding |
1920: MAS6 1922: MAS4, 5, 8, 9, 17 1925: MAS11 1926: MAS12, 13, 19 - 21 1927: MAS16 (ex-MAS22) 1928: MAS18 1936: MAS15 |
|
Displacement normal, t |
|
|
Displacement full, t |
16 |
|
Length, m |
16.0 |
|
Breadth, m |
2.63 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
MAS3 - 8, 16, 17, 19: 2 Isotta-Fraschini petrol engines MAS9, 10, 12 - 15, 18, 20 - 22: 2 Isotta-Fraschini petrol engines / 2 Rognini electric motors MAS11: 2 Sterling petrol engines |
|
Power, h. p. |
MAS3 - 8, 11, 16, 17, 19: 450 MAS9, 10, 12 - 15, 18, 20 - 22: 450 / 10 |
|
Max speed, kts |
MAS3 - 8, 11, 16, 17, 19: 22.3 - 25.2 MAS9, 10, 12 - 15, 18, 20 - 22: 22.3 - 25.2 / 4 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | 160 - 200(22 - 25) / 20(4) |
|
Armament |
(3 x 1 - 6.5/115, 2 - 450 TT) or (1 x 1 - 47/40 H1901, 1 x 1 - 6.5/115), 4 - 6 DC |
|
Complement |
8 |
Project history: So-called "12-ton" boats designed by A. Bisio (SVAN) and built by different builders in 1916-1918. Boats differed from each other by armaments and engines. Some (1, 4 and 6th series) were extra equipped with 10hp electric motors for silent running.
Modernizations: None.
Naval service: MAS15 was stored to our days as museum piece in Rome.

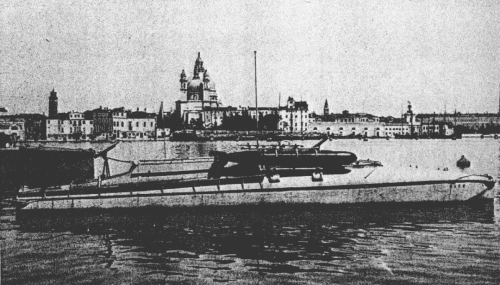

MAS9
