MAS23 1916
|
Names |
MAS23 - 52 |
|
Builders |
Ansaldo, Genova: MAS23-52 |
|
Completed |
1916: MAS23 - 51 1917: MAS52 |
|
Losses |
MAS25 (2.5.1917), MAS28 (27.12.1916), MAS34 (27.4.1925), MAS49 (28.2.1917) |
|
Transfers |
none |
|
Discarding |
1920: MAS27, 32 1921: MAS42, 43 1922: MAS35, 37, 39 1925: MAS29, 33 1926: MAS23, 24, 26, 30, 31, 38, 40, 45 - 47 1928: MAS41, 44 1929: MAS36, 48, 50 - 52 |
|
Displacement normal, t |
11.8 |
|
Displacement full, t |
|
|
Length, m |
16.0 |
|
Breadth, m |
2.63 |
|
Draught, m |
1.30 |
|
No of shafts |
2 |
|
Machinery |
2 Sterling petrol engines |
|
Power, h. p. |
400 |
|
Max speed, kts |
18 - 22 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | 200(22) |
|
Armament |
MAS23 - 44, 46 - 52: 1 x 1 - 47/40 H1901, 1 x 1 - 6.5/115, 4 DC MAS45: 1 x 1 - 37/20 H1886, 2 - 350 TT |
|
Complement |
8 |
Project history: So-called "12-ton" boats designed by A. Bisio (SVAN) and built by different builders in 1916-1918. Boats differed from each other by armaments and engines. Some (1, 4 and 6th series) were extra equipped with 10hp electric motors for silent running.
Modernizations: MAS45, ~1916: was armed with 1 x 1 - 47/40 H1901, 1 x 1 - 6.5/115, 4 DC.
Naval service: No significant events.

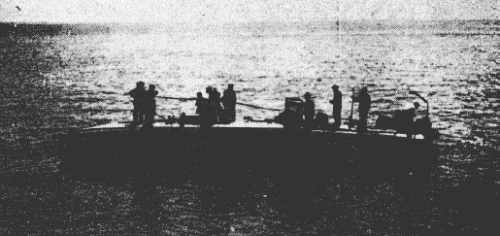

MAS33 1916
