MAS115 1918
|
Names |
MAS115 - 139 |
|
Builders |
SVAN, Piacenza / Arsenale di Venezia: MAS115, 116, 119, 120, 122 SVAN, Piacenza / SVAN, La Spezia: MAS117, 118, 123 - 139 SVAN, La Spezia: MAS121 |
|
Completed |
1918: MAS115 - 139 |
|
Losses |
MAS125 (9.8.1918), MAS133 (1.6.1927), MAS135 (22.4.1919) |
|
Transfers |
none |
|
Discarding |
1921: MAS134 1922: MAS115 - 117, 119 - 122, 127 1925: MAS131, 137, 139 1926: MAS118, 126, 129, 132, 136, 138 1927: MAS130 1928: MAS123, 124, 128 |
|
Displacement normal, t |
19 |
|
Displacement full, t |
|
|
Length, m |
18.0 |
|
Breadth, m |
3.20 |
|
Draught, m |
1.20 |
|
No of shafts |
2 |
|
Machinery |
2 Isotta-Fraschini petrol engines |
|
Power, h. p. |
500 |
|
Max speed, kts |
21 - 23 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | 300(18) |
|
Armament |
1 x 1 - 76/30 A1914, 1 x 1 - 6.5/115, 20 DC |
| Electronic equipment | hydrophone |
|
Complement |
12 |
Project history: Boats were arranged with hydrophone and used as anti-submarine.
Modernizations: None.
Naval service: Nearly all boats were completed in SVAN Yard at Piacenza and armed in the Arsenale di Venezia.

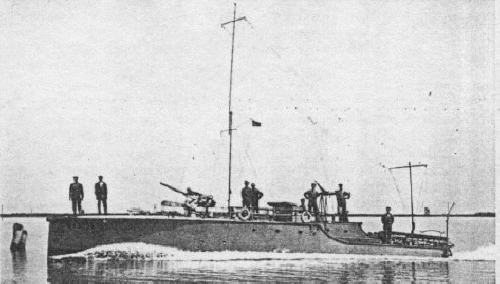

MAS120 1918
