Names |
G70 Gabriele G71 Grasso |
|
Builders |
Picchiotti, Viareggio: G70, 71 |
|
Completed |
1967: G70, G71 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2007: G70 2010: G71 |
|
Displacement standard, t |
|
|
Displacement full, t |
54 |
|
Length, m |
23.2 |
|
Breadth, m |
6.60 |
|
Draught, m |
1.00 |
|
No of shafts |
3 |
|
Machinery |
3 CRM 18-DS/3 diesels |
|
Power, h. p. |
2500 |
|
Max speed, kts |
34.2 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 730(19.7) |
|
Armament |
1 x 1 - 12.7/90 |
| Electronic equipment | SC-1210 radar |
|
Complement |
11 |
Project history: Patrol boats of Italian Customs Service (Guardia di Finanza).
Modernizations: None.
Naval service: No significant events.

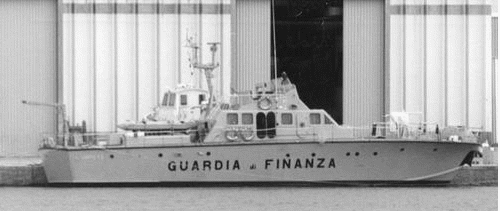

Gabriele 1999
© Ivan Gogin, 2015
