Names |
CP265-292 |
|
Builders |
Rodriguez, Messina: CP265-292 |
|
Completed |
2001: CP265-273 2002: CP274-283 2003: CP285, 286 2004: CP284, 287 2005: CP288-292 |
|
Losses |
none |
|
Transfers |
Panama, 5.2012: CP266 (Presidente Guillermo Endara), CP270 (Presidente Ernesto Pérez Balladares), CP272 (Presidente Mireya Moscoso), CP275 (Presidente Martin Torrijos), CP279 |
|
Discarding |
in service (2019): CP265, 267-269, 271, 273, 274, 276-278, 280-292 |
|
Displacement standard, t |
42 |
|
Displacement full, t |
55 |
|
Length, m |
22.1 pp 25.0 oa |
|
Breadth, m |
5.76 |
|
Draught, m |
0.92 |
|
No of shafts |
2 + 1 waterjet |
|
Machinery |
3 Isotta-Fraschini V1312 T2 diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil 10 |
| Endurance, nm(kts) | 900(18) |
|
Armament |
none |
| Electronic equipment | SPN-753X radar |
|
Complement |
8 |
Project history: 25 were ordered in late 1999 for delivery within 30 months; option for five additional included in contract. Aluminum construction. Carry a 4.5m rigid inflatable inspection launch with a 45hp gasoline outboard motor.
Modernizations: None.
Naval service: No significant events.

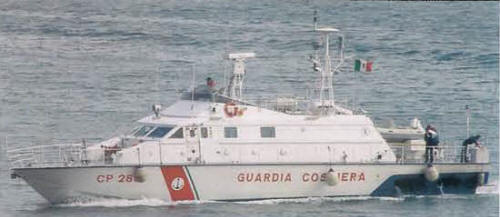

CP288 2007
