REGIA MARINA (ITALY)

CAPITAL SHIPS

RUGGIERO DI LAURIA battleships (1888 - 1891)

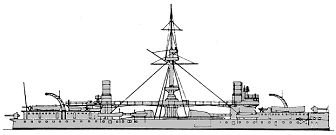

Ruggiero di Lauria 1905

Name No Yard No Builder Laid down Launched Comp Fate
Ruggiero di Lauria     R. Cantiere di Castellamare di Stabia 3.8.1881 9.8.1884 1.2.1888 stricken 11.1909
Francesco Morosini     R. Arsenale di Venezia 4.12.1881 30.7.1885 21.8.1889 sunk as target 15.9.1909
Andrea Doria, 2.1915- GR104     R. Arsenale di La Spezia 7.1.1882 21.11.1885 16.5.1891 stricken 5.1911, floating battery 4.1915-11/1918



Displacement normal, t

9886

Displacement full, t

Ruggiero di Lauria: 10997

Francesco Morosini: 11145

Andrea Doria: 11027

Length, m

100.0 pp 105.9 oa

Breadth, m

19.8

Draught, m

Ruggiero di Lauria: 8.29

Francesco Morosini: 8.37

Andrea Doria: 8.32

No of shafts

2

Machinery

Ruggiero di Lauria, Andrea Doria: 2 VC, 8 cylindrical boilers

Francesco Morosini: 2 VC, 8 oval boilers

Power, h. p.

Ruggiero di Lauria: 10591

Francesco Morosini: 10000

Andrea Doria: 10500

Max speed, kts

Ruggiero di Lauria: 17

Francesco Morosini: 16

Andrea Doria: 16.1

Fuel, t

coal 850

Endurance, nm(kts) 2800(10)

Armour, mm

steel; side: 450, citadel: 360, barbettes: 360, CT: 250, deck: 75

Armament

2 x 2 - 432/27 A, 2 x 1 - 152/32 B, 4 x 1 - 120/32 B(c.o.), 2 - 350 TT (beam)

Complement

507

Project history: This class was a considerable compromise, because the minister of the Navy, Vice-Admiral Ferdinando Acton, opposed the building of large vessels such as the Italia class. He favoured ships of not more than 8000-10000t with a maximum speed of 15kts, and was critical of huge guns - on 8 March 1880, a large muzzle-loader aboard Duilio blew up, having been double-loaded, and this incident roused public opinion against such large ships and guns. Acton gave the job of designing the new ships to Eng Insp Giuseppe Micheli. This naval architect, after having produced some original projects, elected to design an improved Duilio, and, indeed, the Ruggiero di Lauria class was essentially a repetition of the Duilios. Some improvements were incorporated - a high forecastle, breech-loading 432mm guns in barbettes, a better quality and distribution of armour - but in fact the design was already obsolete when the ships entered service.

Authorised under the 1880 Naval programme, the three ships were unremarkable and had rather short lives.

Ship protection: Ships were protected by 450mm side armour and 75mm deck.

Modernizations: None.

Naval service: After being struck off, Ruggiero di Lauria was used as a floating oil depot at La Spezia until 1943, her hulk, sunk in shallow waters by bombing, being finally broken up in 1946-7. Andrea Doria was used as a floating battery GR104 and served at Brindisi until after World War I, when she became an oil depot until broken up in 1929.

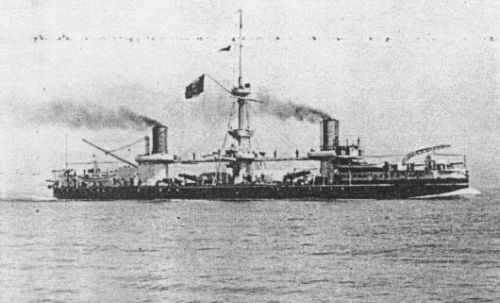

Andrea Doria 1899

© Ivan Gogin, 2014
