Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
Monte Cengio | R. Cantiere di Castellamare di Stabia | 7/1918 | 10.12.1919 | 6/1920 | auxiliary 11.1924 | ||
Monte Grappa | R. Cantiere di Castellamare di Stabia | 5.1918 | 21.9.1918 | 1.1919 | stricken 11.1924 | ||
Montello | R. Cantiere di Castellamare di Stabia | 5.1918 | 31.12.1918 | 5.1919 | stricken 11.1924 | ||
Monte Novegno | R. Cantiere di Castellamare di Stabia | 5/1918 | 31.5.1919 | 6/1920 | auxiliary 11.1924 |
Displacement normal, t |
575 - 633 |
Displacement full, t |
|
Length, m |
40.0 pp |
Breadth, m |
10.0 |
Draught, m |
1.78 |
No of shafts |
2 |
Machinery |
2 Fiat-San Giorgio diesels |
Power, h. p. |
700 |
Max speed, kts |
7 |
Fuel, t |
diesel oil |
Endurance, nm(kts) | 370(7) |
Armament |
1 x 1 - 381/40 V1914 |
Complement |
Project history: Unique series of floating batteries, built under special order, instead of converted from trophy vessels. Officially they were rated as monitors.
Modernizations: None
Naval service: No significant events.

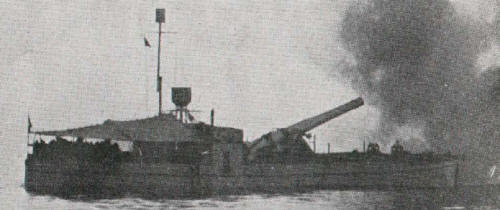

Monte Grappa 1919
