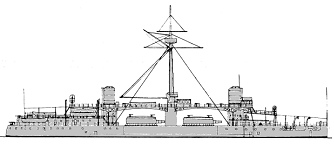

Duilio 1895
Dandolo 1904
Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
Duilio | R. Cantiere di Castellamare di Stabia | 6.1.1873 | 8.5.1876 | 6.1.1880 | stricken 6.1909 | ||
Dandolo | R. Arsenale di La Spezia | 6.1.1873 | 10.7.1878 | 11.4.1882 | stricken 1.1920 |
Displacement normal, t |
Duilio: 10962 Dandolo: 11025 |
Displacement full, t |
Duilio: 12071 Dandolo: 12037 |
Length, m |
103.5 pp 109.2 oa |
Breadth, m |
19.7 |
Draught, m |
Duilio: 8.31 Dandolo: 8.36 |
No of shafts |
2 |
Machinery |
2 VC, 8 rectangular boilers |
Power, h. p. |
Duilio: 7711 Dandolo: 8045 |
Max speed, kts |
Duilio: 15.0 Dandolo: 15.6 |
Fuel, t |
coal 1000 |
Endurance, nm(kts) | 3760(10) |
Armour, mm |
steel; side: 550 max, deck: 30 - 50, turrets: 430, citadel: 430, transverse frames: 400 |
Armament |
Duilio: 2 x 2 - 450/20 Armstrong 100ton MLR, 3 - 350 TT (1 bow, 2 beam), 1 TB Clio Dandolo: 2 x 2 - 450/20 Armstrong 100ton MLR, 3 - 350 TT (1 bow, 2 beam) |
Complement |
420 |
Project history: These two vessels were the first battleships in the world rigged only with a military mast and armed with giant guns, and were the first Italian 2-shaft capital ships. They were designed by Director Eng Benedetto Brin. The original plan was for four 35t guns, then for 60t guns, but 100t weapons were actually fitted. Armstrong-built MLs, these fired one 865kg projectile every 15 minutes, with a muzzle velocity of 454-509m/s. Aboard Duilio, at the stern, was a compartment for a small TB (Clio, 261t).
Ship protection: The belt was of Creusot steel plates; the armoured central citadel, redoubt and turrets were NS, the turrets being mounted en echelon close together amidships. There was a cellular raft at the bows and stern between an underwater deck and that next above, subdivided into 83 watertight compartments.
Modernizations: 1890, Duilio: + 3 x 1 - 120/40 A
1898, Dandolo: was rebuilt: 10679/11264t, new VC engines, complement was 495, new turrets had 225mm armour; new armament consisted of 2 x 2 - 254/40 A, 7 x 1 - 152/40 A91, 5 x 1 - 120/40 A91, 16 x 1 - 57/43 N, 8 x 5 - 37/20 H, 4 x 1 - 11.4/94, 4 - 450 TT (1 bow, 2 beam, 1 stern)
1900, Duilio: + 2 x 1 - 76/40 A, 8 x 1 - 57/40 H, 4 x 5 - 37/20 H
Naval service: Duilio was disarmed on 27.6.1909, hulked and, renumbered GM40, used as a floating coal and oil tank. Dandolo was rebuilt in 1895/8 to Insp Eng Giacinto Pullino's design. During World War I she served as a local defence ship, first at Brindisi and later at Valona. She was removed from the Navy list on 23.1.1920.

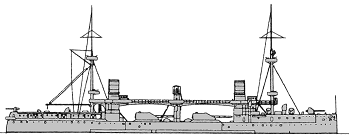

Dandolo 1898
© Ivan Gogin, 2014
