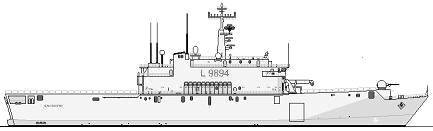

San Giusto 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| San Giusto | L9894 | Fincantieri, Riva Trigoso | 7.4.1992 | 2.12.1993 | 14.4.1994 | in service (2019) |
|
Displacement standard, t |
7000 |
|
Displacement full, t |
7960 |
|
Length, m |
118.0 pp 137.0 oa |
|
Breadth, m |
20.5 hull 25.0 deck |
|
Draught, m |
6.00 |
|
No of shafts |
2 |
|
Machinery |
2 GMT A420-12 diesels |
|
Power, h. p. |
16800 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 7500(16) |
|
Armament |
1 x 1 - 76/62 OTO-Melara Compact, 2 x 2 - 20/70 Mk 24, 2 x 1 - 12.7/90, 3 - 5 helicopters (3 CH-47 Chinook or 3 SH-3D Sea King or 5 AB-212) |
| Military load | 3 LCM (MTM), 3 LCVP (MTP), 34 APC, 349 troops or 204 cadets + 62 instructors |
|
Electronic equipment |
SPS-702, SPN-753, SPG-70 radars, SLQ-747, SLR-730 ECM suites, 2x SCLAR decoy RL, SLQ-25 Nixie torpedo decoy, SADOC 2 CCS |
|
Complement |
198 |
Project history: Modified version of the San Giorgio class, intended to act as training ship for the naval academy at Livorno in peacetime. Authorized in 1990 and ordered in 1991. Has a broader island superstructure than the earlier San Giorgio class, and the boats are stowed on a sponson to port to restore flight deck area, providing a taxiway between the landing area at the stern and a smaller one to port at the bow. Up to six medium-sized helicopters can be accommodated on deck. There is no bow vehicle ramp, but the side doors and ramps are larger than on the earlier units. Is able to carry 34 combat vehicles totaling up to 1200t below decks, and additional light vehicles can be carried on the flight deck. About 85t (80m³) of combat stores and 30t (80m³) of provisions can be accommodated. Landing craft include three 63t MTM-series medium landing craft in the 20.5x7.0m stern docking well and three 14t MTP-series personnel landing craft in davits to port, plus one 9t motor launch.
Modernizations: early 2000s: - 2 x 2 - 20/70; + 2 x 1 - 25/87 KBA25/80
Naval service: No significant events.

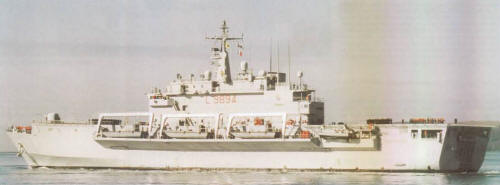

San Giusto 2004
