MZ831
MZ943
MZ1046
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| "MFP" type | |||||||
| MZ360 (ex-F360A), 5.1950- MTC1107 | 1953- A5357 | CNR, Palermo | 28.6.1941 | 8.1942 // 1945 | discarded 1980? | ||
| GLS435 (ex-F435C), 5.1950- MTC1102 | 1953- A5352 | J. Smit, Foxhol, Netherlands | 9.8.1941 | 11.1942 // 1946 | discarded 1960 | ||
| GLS436 (ex-F436C), 5.1950- MTC1103 | 1953- A5353 | J. Smit, Foxhol, Netherlands | 9.8.1941 | 4.1943 // 1946 | discarded 10.1970 | ||
| GLS437 (ex-F437C), 5.1950- MTC1104 | 1953- A5354 | J. Smit, Westerbroek, Netherlands | 9.8.1941 | 11.1942 // 1946 | discarded 7.1968 | ||
| MZ831 (ex-F831D), 5.1950- MTC1010 | 1953- A5350 | 21.5.1942 | 12.1943 // 1946 | discarded 8.1968 | |||
| MZ1155 (ex-F1155D), 5.1950- MTC1108 | CNQ, Fiume | 10.6.1943 | 10.1944 // 1945 | discarded 5.1950 | |||
| MZ1191 (ex-F1191D), 5.1950- MTC1106 | CRDA, San Marco | 10.6.1943 | 12.1944 // 1945 | discarded 5.1950 | |||
| "MFP-M" type | |||||||
| MZ943 (ex-F943DM), 5.1950- MTC1109 | CRDA, Monfalcone | 5.4.1943 | 11.1944 // 1946 | discarded 5.1950 | |||
| MZ1045 (ex-F1045DM), 5.1950- MTC1105 | 1953- A5355 | CRDA, Monfalcone | 5.4.1943 | 12.1944 // 1945 | discarded 1960 | ||
| MZ1046 (ex-KF1046, ex-F1046DM), 5.1950- MTC1101 | 1953- A5351 | CRDA, Monfalcone | 5.4.1943 | 1.1945 // 1945 | discarded 8.1968 | ||
|
Displacement standard, t |
MFP-A, C: 155 MFP-D: 168 MFP-DM: 215 |
|
Displacement full, t |
MFP-A, C: 220 MFP-D: 239 MFP-DM: 256 |
|
Length, m |
MFP-A, C: 47.0 MFP-D, DM: 49.8 |
|
Breadth, m |
MFP-A, C: 6.53 MFP-D: 6.59 MFP-DM: 8.59 |
|
Draught, m |
MFP-A, C: 1.45 deep load MFP-D, DM: 1.35 deep load |
|
No of shafts |
3 |
|
Machinery |
3 Deutz diesels |
|
Power, h. p. |
MFP-A, C: 390 MFP-D, DM: 375 |
|
Max speed, kts |
MFP-A, C: 10.5 MFP-D: 10.3 MFP-DM: 8 |
|
Fuel, t |
diesel oil 4.1 |
|
Endurance, nm(kts) |
MFP-A-C: 1340(7) MFP-D: 1120(7) |
|
Armament |
(1 x 1 - 37/83 SK C/30 + 2 x 1 - 20/65 C/38) or 3 x 1 - 20/65 C/38 |
|
Military load |
MFP-A, C: 105 t (3 Pz.IV or 2 T-34 or 200 men) MFP-D: 140 t (3 Pz.IV or 2 Pz.VI or 200 men) |
|
Complement |
17 - 21 |
Project history: Ex-German landing barges of MFP-A, C and D types, transferred after the war.
Modernizations: None.
Naval service: No significant events.

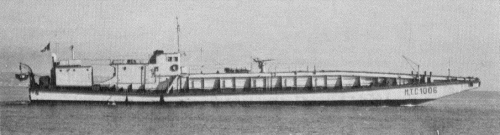

similar MTC1006 1974
