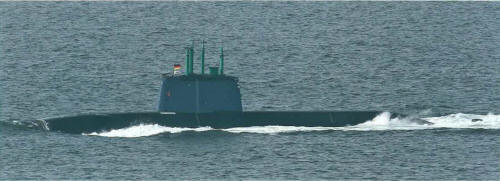

Tanin 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| תנין [Tanin] | HDW, Kiel, Germany + Nordseewerke, Emden, Germany | 19.2.2012 | 9/2014 | in service (2019) | |||
| רהב [Rahav] | HDW, Kiel, Germany + Nordseewerke, Emden, Germany | 6.3.2013 | 1/2016 | in service (2019) | |||
| דרקון [Drakon] | HDW, Kiel, Germany | 2016 | 2020 | building (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
2050 / 2400 |
|
Length, m |
68.6 |
|
Breadth, m |
6.70 |
|
Draught, m |
6.20 |
|
No of shafts |
1 |
|
Machinery |
3 MTU 16V396 SE84 diesel-generators, 1 Siemens electric motor // BZM120 AIP system |
|
Power, h. p. |
2400 / 5000 / 160 |
|
Max speed, kts |
11 / 20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 8000(8) (snorkel) / ~1500(4) |
|
Armament |
4 - 650 TT (bow), 6 - 533 TT (bow, 16 DM-2A3, inc. Turbo Popeye CruM (~2 Turbo Popeye), Sub-Harpoon SSM (~4 UGM-84C)) |
|
Electronic equipment |
Elta radar, CSU90 (DBQS-21D + AN5039A1) sonar suite, FAS-3, PRS3-15 sonars, Timmex 4CH(v)2 ECM suite, Torbuster decoy launcher, Israeli CCS |
|
Complement |
35 + 20 combat swimmers |
|
Diving depth operational, m |
380 |
Project history: Dolphin 2 class. Ordered in 2006 (first two) and 2012 (third). Enlarged Dolphin with many technologies used in German Type 212 and Israeli missiles and combat control system. Equipped with swimmer lockout facilities in the sail and boat stowage for eight special forces personnel. Torpedo tubes are arranged in two horizontal rows with 650mm tubes outboard. At least one 650mm tube can be used for swimmer exit and ingress, torpedoes are launched from 650mm tubes by means of liners. May be carry Triton ant-helicopter missiles.
Modernizations: 2011-2012, al: + Torbuster decoy launcher
Naval service: No significant events.
Rahav 2014
