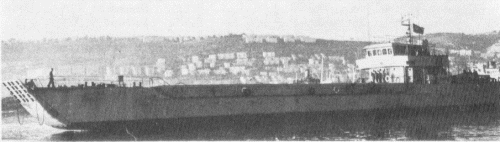

Ashdod 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| אשדוד [Ashdod] | F61 | Israel SYds, Haifa | 1966 | trial ship 2001 | |||
| אשקלון [Ashkelon] | F63 | Israel SYds, Haifa | 1967 | stricken 1993, to Ethiopia (LC302) | |||
| אכזיב [Akhziv] | F65 | Israel SYds, Haifa | 1967 | stricken 1999 |
|
Displacement standard, t |
400 |
|
Displacement full, t |
730 |
|
Length, m |
62.7 |
|
Breadth, m |
10.0 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
3 MWM diesels |
|
Power, h. p. |
1900 |
|
Max speed, kts |
10.5 |
|
Fuel, t |
diesel oil 37 |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 20/70 Mk 10 |
| Military load |
tanks, troops |
| Electronic equipment | radar |
| Complement | 20 |
Project history: Standard LCUs.
Modernizations: None.
Naval service: No significant events.
1976
