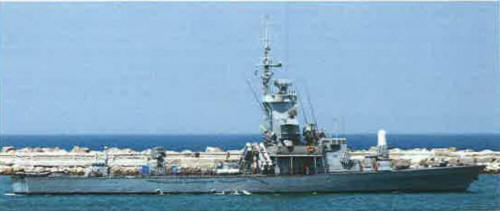

Romah 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| רומח [Romah] | Israeli SY, Haifa | 30.10.1981 | 11/1981 | in service (2019) | |||
| קשת [Keshet] | Israeli SY, Haifa | 10.1982 | 11/1982 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
490 |
|
Length, m |
58.2 wl 61.7 oa |
|
Breadth, m |
7.62 |
|
Draught, m |
2.78 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
31 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4000(17) |
|
Armament |
2 x 2 Harpoon SSM (4 RGM-84A), 6 x 1 Gabriel Mk 2 SSM (6 Gabriel Mk 2), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 6 - 20/76 Mk 15 Phalanx, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
|
Electronic equipment |
TH-D1040 Neptune, RTN-10X Orion radars, MN-53 ECM suite, Deseaver 1x 45-tube, 4x 24-tube, 4x 1-tube decoy RL |
| Complement | 45 |
Project history: Sa'ar 4.5 class. Lengthened Reshef class hull for additional armament or helicopter facilities. Romah and Keshet have additional armament.
Modernizations: 1990s, both: - MN-53 ECM suite; + NS-9003, NS-9005, NATACS ECM suites
2000, Romah; 2001, Keshet: - 2 x 2 Harpoon SSM (4 RGM-84A), RTN-10X Orion radars; + 2 x 2 Harpoon SSM (4 RGM-84C), 4 x 8 Barak SAM (VLS, 32 Barak), 2 x 1 - 12.7/90, 2x EL/M-2221 radars, MSIS e/o system
Naval service: No significant events.
Keshet 2006
