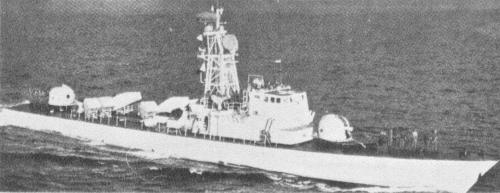

Reshef 1980

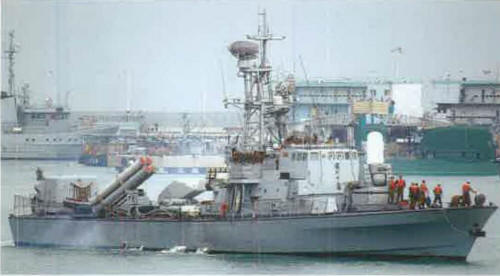

Moledet 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| רשף [Reshef] | Israeli SY, Haifa | 19.2.1973 | 4.1973 | to Chile 11.1996 (Angamos) | |||
| קשת [Keshet] | Israeli SY, Haifa | 2.8.1973 | 10/1973 | to Chile 1981 (Chipana) | |||
| רומח [Romah] | Israeli SY, Haifa | 1.1974 | 3/1974 | to Chile 1979 (Casma) | |||
| כידון [Kidon] | Israeli SY, Haifa | 4.7.1974 | 9/1974 | BU 1994 | |||
| תרשיש [Tarshish] | Israeli SY, Haifa | 17.1.1975 | 3/1975 | to Chile 6.1997 (Papudo) | |||
| יפו [Yaffo] | Israeli SY, Haifa | 3.2.1975 | 4/1975 | BU 1998 | |||
| ניצחון [Nitzahon] | Israeli SY, Haifa | 10.7.1978 | 9/1978 | stricken 1.2014 | |||
| עצמאות [Atsmout] | Israeli SY, Haifa | 3.12.1978 | 2/1979 | stricken 3.2014 | |||
| מולדת [Moledet] | Israeli SY, Haifa | 22.3.1979 | 5/1979 | to Sri Lanka 8.2000 (නන්දිමිත්ර [Nandimitra]) | |||
| קוממיות [Komemiut] | Israeli SY, Haifa | 19.7.1979 | 8/1980 | to Sri Lanka 8.2000 (සුරනිමල [Suranimala]) |
|
Displacement standard, t |
415 |
|
Displacement full, t |
450 |
|
Length, m |
58.1 |
|
Breadth, m |
7.60 |
|
Draught, m |
2.40 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4000(17.5) |
|
Armament |
Reshef, Keshet, Romah, Kidon, Tarshish, Yaffo, Atsmout, Moledet: 1 x 3 Gabriel Mk 1 SSM, 4 x 1 Gabriel Mk 1 SSM (7 Gabriel Mk 1), 2 x 1 - 76/62 OTO-Melara Compact, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 Nitzahon, Komemiut: 1 x 3 Gabriel Mk 1 SSM, 4 x 1 Gabriel Mk 1 SSM (7 Gabriel Mk 1), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 MK 10, 2 x 1 - 20/70 |
|
Electronic equipment |
TH-D1040 Neptune, RTN-10X Orion radars, MN-53 ECM suite, (0-1)x 45-tube, (4-6)x 24-tube, 4x 1-tube decoy RL |
| Complement | 45 |
Project history: Sa'ar 4 class. Development began towards the end of 1968. An expansion of the building ships at Haifa enabled rapid construction of the next six units ordered in 1975. Excellent seaboats with large endurance at cruising speed. Can be rigged for ASW, with EDO780 dipping sonar at the stern in place of 76mm mount and one triple 324mm Mk 32 TT on the port side, missile complement in this case reduced to 2 Harpoons and 4 Gabriels.
Modernizations: 1979, Tarshish: - 1 x 1 - 76/62; + helicopter deck (temporarily for tests)
1983-1985, Reshef, Kidon, Tarshish, Yaffo, Atsmout, Moledet: - 1 x 3 Gabriel Mk 1 SSM, 4 x 1 Gabriel Mk 1 SSM, 1 x 1 - 76/62; + 2 x 2 (or 1 x 4) Harpoon SSM (4 RGM-84A), 2 x 3 Gabriel Mk 2 SSM (6 Gabriel Mk 2), 1 x 6 - 20/76 Mk 15 Phalanx, Mk 90 radar
1983-1985, Nitzahon, Komemiut: - 1 x 3 Gabriel Mk 1 SSM, 4 x 1 Gabriel Mk 1 SSM, 1 x 1 - 40/60; + 2 x 2 (or 1 x 4) Harpoon SSM (4 RGM-84A), 2 x 3 Gabriel Mk 2 SSM (6 Gabriel Mk 2), 1 x 6 - 20/76 Mk 15 Phalanx, Mk 90 radar
1990s, Nitzahon, Atsmout: - 1 x 3 Gabriel Mk 2 SSM, MN-53 ECM suite; + 2 x 1 Gabriel Mk 2 SSM, NS9003/5, NATACS ECM suites
early 2010s, Nitzahon, Atsmout: - 1 x 1 - 76/62; + 2 x 3 - 324 Mk 32 TT, EDO780 sonar
Naval service: No significant events.
Reshef 1974
Nitzhon 2006
