Mivtakh 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| מבטח [Mivtakh] | 311 | CMN, Cherbourg, France | 11.4.1967 | 1968 | stricken 1.1996 | ||
| מזנק [Miznak] | 312 | CMN, Cherbourg, France | 1967 | 1968 | stricken 1.1996 | ||
| משגב [Misgav] | 313 | CMN, Cherbourg, France | 1967 | 1968 | stricken 1.1996 |
|
Displacement standard, t |
220 |
|
Displacement full, t |
250 |
|
Length, m |
44.9 |
|
Breadth, m |
7.00 |
|
Draught, m |
1.70 mean 2.50 deep |
|
No of shafts |
4 |
|
Machinery |
4 Maybach-Mercedes MD872 diesels |
|
Power, h. p. |
13500 |
|
Max speed, kts |
42 |
|
Fuel, t |
diesel oil 30 |
| Endurance, nm(kts) | 2500(15) |
|
Armament |
3 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90, 4 x 1 - 324 TT |
|
Electronic equipment |
TH-D1040 Neptune, RTN-10X Orion radars, ELAC sonar |
| Complement | 35 - 40 |
Project history: Built by CMN, Cherbourg, although designed by Lürssen Werft of Bremen. Sa'ar 1 class. Delivered to Israel unarmed.
Modernizations: 1973, Miznak; 1974, Mivtakh, Misgav: new armament consisted of (2 x 3 Gabriel Mk 1 SSM, 2 x 1 Gabriel Mk 1 SSM (8 Gabriel Mk 1), 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90) or (1 x 3 Gabriel Mk 1 SSM, 2 x 1 Gabriel Mk 1 SSM (5 Gabriel Mk 1), 2 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90 or (3 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90, 4 x 1 - 324 TT) or (3 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90, 1 x 3 - 324 TT)
1980s, all: + MN53 ECM suite, 6 24-tube decoy launchers and 4 single-tube decoy launchers
Naval service: No significant events.

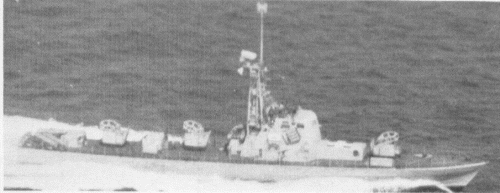

1974
