Hetz 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| חץ [Hetz] | Israeli SY, Haifa | 10.1990 | 12.2.1991 | in service (2019) | |||
| כידון [Kidon] | Israeli SY, Haifa | 1993 | 7.2.1994 | in service (2019) | |||
| יפו [Yaffo] | Israeli SY, Haifa | 1998 | 1.7.1998 | in service (2019) | |||
| תרשיש [Tarshish] | Israeli SY, Haifa | 1995 | 6/1995 | in service (2019) | |||
| חרב [Herev] | Israeli SY, Haifa | 9.5.2002 | 6/2002 | in service (2019) | |||
| סופה [Sufa] | Israeli SY, Haifa | 9.5.2002 | 8/2002 | in service (2019) |
|
Displacement standard, t |
375 |
|
Displacement full, t |
490 |
|
Length, m |
58.2 wl 61.7 oa |
|
Breadth, m |
7.62 |
|
Draught, m |
2.76 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V396 TE or MTU 16V538 TB93 diesels |
|
Power, h. p. |
16380 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil 116 |
| Endurance, nm(kts) | 3000(17) |
|
Armament |
Hetz, Kidon, Yaffo, Tarshish: 2 x 2 Harpoon SSM (4 RGM-84A), 6 x 1 Gabriel Mk 2 SSM (6 Gabriel Mk 2), 4 x 8 Barak SAM (VLS, 32 Barak), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 6 - 20/76 Mk 15 Phalanx, 2 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/90 Herev, Sufa: 2 x 2 Harpoon SSM (4 RGM-84A), 6 x 1 Gabriel Mk 2 SSM (6 Gabriel Mk 2), 4 x 8 Barak SAM (VLS, 32 Barak), 1 x 1 - 25/75 Typhoon, 1 x 6 - 20/76 Mk 15 Phalanx, 2 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/90 |
|
Electronic equipment |
THD-1040 Neptune, 2x EL/M-2221 radar, MSIS e/o system, NS-9003, NS-9005 ECM suites, Deseaver 1x 72-tube, 1x 24-tube, 2x 12-tube, 2x 4-tube decoy RL |
| Complement | 50 |
Project history: Sa'ar 4.5 class with Barak antimissile system and Israeli radars. Can carry 8 Harpoon missiles with no Gabriels. Can carry EDO780 dipping sonar and two 324mm triple Mk 32 TTs instead of 76mm gun. Herev has dual davits for RIB combat swimmer craft and probably doesn't have Barak system.
Modernizations: None.
Naval service: No significant events.

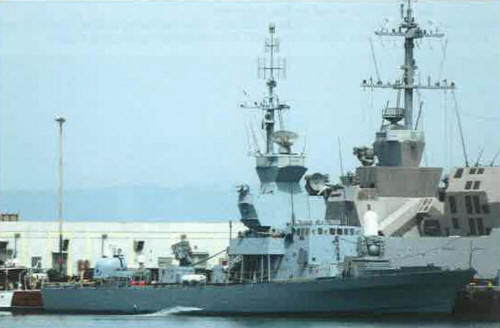

Herev 2006
