No 800 1980
|
Names |
800 |
|
Builders |
Israeli Aircraft Industries, Be'er Sheva: 800 |
|
Commissioned |
1979: 800 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1991: 800 |
|
Displacement standard, t |
38 |
|
Displacement full, t |
47 |
|
Length, m |
21.6 |
|
Breadth, m |
5.50 |
|
Draught, m |
0.9 hull 1.80 propellers |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V331 TC81 diesels |
|
Power, h. p. |
2720 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
700(27) |
|
Armament |
2 x 1 Gabriel Mk 1 SSM (2 Gabriel Mk 1), 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 926 radar |
| Complement |
10 |
Project history: IAI design, similar to Dabur class but smallest ever missile craft. Constructed of aluminium alloy. Because of the small size boat can be transported by land and can also be stored on land to ease maintenance.
Modernizations: 1980s: - 2 x 1 Gabriel Mk 1 SSM
Naval service: No significant events.

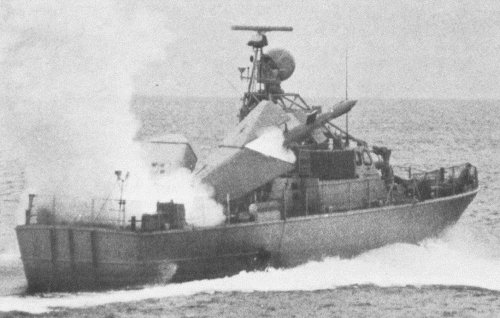

800 1979
