Aliyah 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| עליה [Aliyah] | Israeli SY, Haifa | 10.7.1980 | 8.1980 | to Mexico 1.2004 (Huracán) | |||
| גאולה [Geoula] | Israeli SY, Haifa | 10.1980 | 31.12.1980 | to Mexico 1.2004 (Tormenta) |
|
Displacement standard, t |
|
|
Displacement full, t |
500 |
|
Length, m |
58.2 wl 61.7 oa |
|
Breadth, m |
7.62 |
|
Draught, m |
2.78 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V956 TB91 diesels |
|
Power, h. p. |
14000 |
|
Max speed, kts |
31 |
|
Fuel, t |
diesel oil 116 |
| Endurance, nm(kts) | 4000(17) |
|
Armament |
2 x 2 Harpoon SSM (4 RGM-84A), 4 x 1 Gabriel Mk 2 SSM (4 Gabriel Mk 2), 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/90, 1 helicopter (AS.565SA Atelef) |
|
Electronic equipment |
TH-D1040 Neptune, RTN-10X Orion radars, MN-53 ECM suite, Deseaver 1x 45-tube, 4x 24-tube, 4x 1-tube decoy RL |
| Complement | 53 |
Project history: Sa'ar 4.5 class. Lengthened Reshef class hull for additional armament or helicopter facilities. Aliyah and Geoula had helicopter used for over the horizon targeting. Can also serve as command boats for groups of other FAC,
Modernizations: 1983-1984, both: - 1 x 1 - 40/60; + 1 x 6 - 20/76 Mk 15 Phalanx, Mk 90 radar
1990s, both: - MN-53 ECM suite; + NS-9003, NS-9005, NATACS ECM suites
Naval service: No significant events.

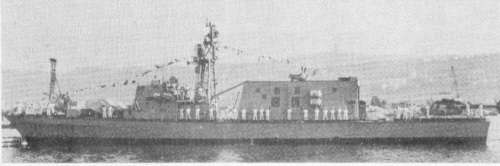

Aliyah 1980
