ISRAELI NAVY (ISRAEL)

COASTAL FORCES

No810 fast attack craft (gun) (1989-1992)

lead-boat No 800 1980

Names

810-818

Builders

Israeli Aircraft Industries, Be'er Sheva: 810-818

Commissioned

1989: 810, 811

1990: 812-815

1992: 816-818

Losses

none

Transfers

none

Discarding

in service (2019): 810-818



Displacement standard, t

48

Displacement full, t

54

Length, m

21.6

Breadth, m

5.50

Draught, m

0.9 hull 1.80 propellers

No of shafts

2

Machinery

2 General Motors Detroit Diesel 16V92TA diesels

Power, h. p.

1380

Max speed, kts

36

Fuel, t

diesel oil

Endurance, nm(kts)

1200(17)

Armament

2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipment Raytheon radar
Complement

9

Project history: Improved Dvora design without Gabriels. Aluminium construction. Can be armed with depth charges, ASW torpedoes or 130mm barrage rocket launchers.

Modernizations: 2000s, most: - 1 x 1 - 20/70; + 1 x 1 - 25/75 Typhoon, MSIS e/o system

2000s, 815: - 1 x 1 - 20/70; + 1 x 3 - 12.7/90, MSIS e/o system

Naval service: No significant events.

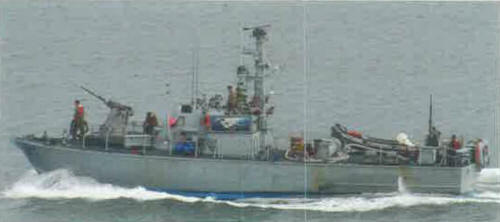

817 2010
