Ibn Khaldoum 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| ابن خلدوم [Ibn Khaldoum], 1991- ابن مغيد [Ibn Maghid] | 507 | Uljanik SY, Yugoslavia | 1977 | 1978 | 21.3.1980 | damaged 2.1991, never repaired |
|
Displacement standard, t |
|
|
Displacement full, t |
1850 |
|
Length, m |
90.0 pp 96.7 oa |
|
Breadth, m |
11.2 |
|
Draught, m |
3.55 |
|
No of shafts |
2 |
|
Machinery |
CODOG: 1 Rolls-Royce Olympus TM-3B gas turbine / 2 MTU 16V956 TB61 diesels |
|
Power, h. p. |
22360 / 7500 |
|
Max speed, kts |
26 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
4000(20) |
|
Armament |
1 x 1 - 57/70 SAK-57 Mk 1, 1 x 1 - 40/70 Bofors 315, 4 x 2 - 20/70 Mk 24, 1 DCR |
|
Sensors |
Decca 1226, Decca 1229, 9LV200 Mk II radars, MS26 sonar |
|
Complement |
93 + 100 trainees |
Project history: Training ship with frigate characteristics of Yugoslav design, first of three ordered for Yugoslavian (never completed), Indonesian and Iraqi navies. Differed from semi-sisters by absence of helicopter pad.
Modernizations: None.
Naval service: During the Iran-Iraq war Ibn Khaldoum was used as a transport. In February 1991 she was caught at Basra by allied forces and was seriously damaged. Later ship was never repaired and abandoned.

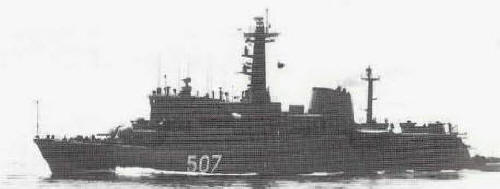

Ibn Khaldoum 1980
