IRAQI NAVY (IRAQ)

COASTAL FORCES

P301 patrol boats (2010-2013)

Name No Yard No Builder Laid down Launched Comp Fate
  P301   Swiftships, Morgan City, USA     26.9.2010 in service (2019)
  P302   Swiftships, Morgan City, USA     27.12.2010 in service (2019)
  P303   Swiftships, Morgan City, USA     26.1.2011 in service (2019)
  P304   Swiftships, Morgan City, USA     13.8.2011 in service (2019)
  P305   Swiftships, Morgan City, USA     3.11.2011 in service (2019)
  P306   Swiftships, Morgan City, USA     13.8.2011 in service (2019)
  P307   Swiftships, Morgan City, USA     22.3.2012 in service (2019)
  P308   Swiftships, Morgan City, USA     22.3.2012 in service (2019)
  P309   Swiftships, Morgan City, USA     22.3.2012 in service (2019)
  P310   Swiftships, Morgan City, USA     17.2.2013 in service (2019)
  P311   Swiftships, Morgan City, USA     17.2.2013 in service (2019)
  P312   Swiftships, Morgan City, USA     5.7.2013 in service (2019)





Displacement standard, t

95

Displacement full, t

100

Length, m

35.0

Breadth, m

7.30

Draught, m

2.50

No of shafts

3 waterjets

Machinery

3 MTU 16V2000 diesels

Power, h. p.

7800

Max speed, kts

30

Fuel, t

diesel oil

Endurance, nm(kts)

1500(12)

Armament

1 x 1 - 30/75 Seahawk DS-30MA2, 2 x 1 - 12.7/90

Sensors

2x Sperry or Furuno FR2115 radars

Complement

25

Project history: US 35m Commercial Cruiser class, procured via the US Foreign Military Sales program. Aluminium construction. Fitted with a stern ramp for 7m RIB.

Modernizations: None.

Naval service: No significant events.

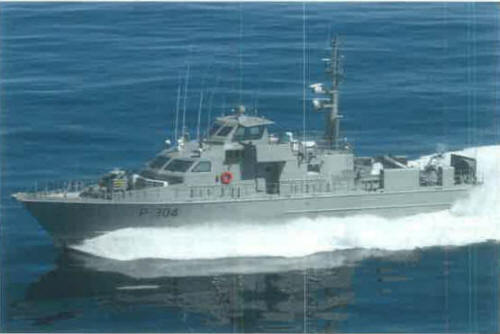

P304 2011
