Names |
P101 1 ناصر [Nasur 1] P102 2 ناصر [Nasur 2] P103 3 ناصر [Nasur 3] P104 4 ناصر [Nasur 4] P105 5 ناصر [Nasur 5] |
|
Builders |
Nanhua HSEC, Wuhan, China: P101-105 |
|
Commissioned |
2004: P101-105 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): P101-105 |
|
Displacement standard, t |
|
|
Displacement full, t |
70 |
|
Length, m |
27.1 |
|
Breadth, m |
3.80 |
|
Draught, m |
1.80 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V396 TE742 diesels |
|
Power, h. p. |
4025 |
|
Max speed, kts |
32 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2100(16) |
|
Armament |
1 x 1 - 12.7/79, 1 x 1 - 7.6/90 |
|
Sensors |
JRC radar |
|
Complement |
12 |
Project history: HSEC Predator class. First vessels of newly formed Iraqi Coastal Defence Force, later again Iraqi Navy. They were originally to have arrived in 2002 under the oil-for-food program but were not allowed to enter the country due to their military abilities. Boats were transferred only 4.5.2004 when Saddam Hussein was killed.
Modernizations: None.
Naval service: No significant events.

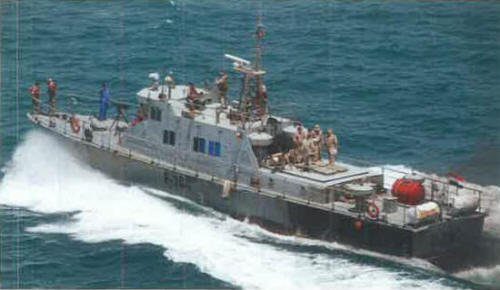

Nasur 4 2008
