IRAQI NAVY (IRAQ)

COASTAL FORCES

FATEH large patrol craft (2009-2010)

Name No Yard No Builder Laid down Launched Comp Fate
ناصر [Nasir] 701   Fincantieri, Rivo Trigoso or Muggiano, Italy 4.2008 15.4.2009 8.10.2010 in service (2019)
فتح [Fateh] 702   Fincantieri, Rivo Trigoso or Muggiano, Italy 11.1.2008 2009 21.6.2009 in service (2019)
ماجد [Majed] 703   Fincantieri, Rivo Trigoso or Muggiano, Italy 7.2008 2009 14.2.2010 in service (2019)
سهمك [Shimook] 704   Fincantieri, Rivo Trigoso or Muggiano, Italy 10.2008 2010 14.2.2010 in service (2019)





Displacement standard, t

390

Displacement full, t

427

Length, m

47.2 pp 53.4 oa

Breadth, m

8.10

Draught, m

2.50

No of shafts

2

Machinery

2 Isotta-Fraschini V1716 T2MSD diesels

Power, h. p.

6335

Max speed, kts

23

Fuel, t

diesel oil

Endurance, nm(kts)

1800(16)

Armament

1 x 1 - 30/82 Marlin, 2 x 1 - 12.7/90, 4 x 1 - 7.6/90

Sensors

2x nav. radars

Complement

30 + 12 passengers

Project history: Ordered under 2006 contract, also known as Saettia Mk 4 class. Fitted with a stern ramp for 11m RIB.

Modernizations: None.

Naval service: No significant events.

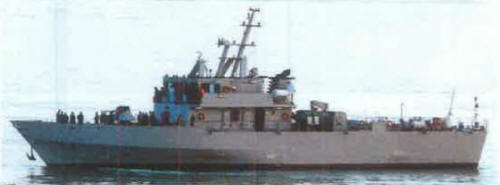

Majeed 2009
