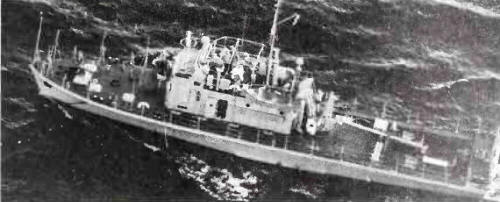

No223 1970
|
Names |
223, 224 |
|
Builders |
345 Yd, Yaroslavl' or Sosnovka Yd, USSR: 223, 224 |
|
Commissioned |
1965: 223, 224 |
|
Losses |
223 (1-2/1991), 224 (1-2/1991) |
|
Transfers |
none |
|
Discarding |
none |
|
Displacement standard, t |
86 |
|
Displacement full, t |
99 |
|
Length, m |
29.9 |
|
Breadth, m |
5.98 |
|
Draught, m |
1.52 |
|
No of shafts |
2 |
|
Machinery |
2 M-50F-4 diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
550(14) |
|
Armament |
1 x 2 - 25/82 2M-3M, 1 x 2 - 12.7/79 |
|
Sensors |
Stvor or Donets-2 radar |
|
Complement |
15 |
Project history: Soviet multipurpose boats of Project 368, patrol variant T368.
Modernizations: None.
Naval service: Both craft were lost during Desert Storm operation in 1991.
© Ivan Gogin, 2016
