Hengam 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| هنگام [Hengam] | 511 | Yarrow, Scotstoun, UK | 27.9.1973 | 12.8.1974 | in service (2019) | ||
| لارک [Larak] | 512 | Yarrow, Scotstoun, UK | 7.5.1974 | 12.11.1974 | in service (2019) | ||
| لاوان [Lavan] | 513 | Yarrow, Scotstoun, UK | 12.6.1978 | 16.1.1985 | in service (2019) | ||
| تنب [Tonb] | 514 | Yarrow, Scotstoun, UK | 6.12.1979 | 21.2.1985 | in service (2019) |
|
Displacement standard, t |
2500 |
|
Displacement full, t |
2940 |
|
Length, m |
86.8 pp 93.0 oa |
|
Breadth, m |
14.9 |
|
Draught, m |
3.00 max |
|
No of shafts |
2 |
|
Machinery |
511, 512: 4 Paxman Ventura 12YJCM diesels 513, 514: 4 MTU 12V562 TB61 diesels |
|
Power, h. p. |
511, 512: 5600 513, 514: 5800 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil 295 |
| Endurance, nm(kts) |
3500(12) |
|
Armament |
511, 512: 4 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 12.7/90, 1 x 40 -122 BM-21 RL, helicopter deck 513, 514: 4 x 2 - 23/87 ZU-23-2, 2 x 1 - 12.7/90, 1 x 40 - 122 BM-21 RL, helicopter deck |
|
Electronic equipment |
Decca 1229 radar |
| Military load |
2 LCVP, 227 troops, 9 tanks, 700 t cargo |
| Complement |
80 |
Project history: Lack the through tank deck of the larger British Sir Lancelot class. Flight deck for one helicopter aft. Carry up to 9 tanks depending on size (one Chieftain abreast or two T-54/55). 700t cargo capacity includes 300t of vehicle fuel. 42.7x9.4m vehicle deck can accommodate 12 T-55 or 6 Chieftain tanks. 10t crane can handle two Uniflote cargo lighters and 12 Z-boat LCPs. First two were ordered in 1972, four more in 1977. Material for the last two ships was ordered by Yarrow by the time of their cancellation in March 1979.
Modernizations: None.
Naval service: No significant events.

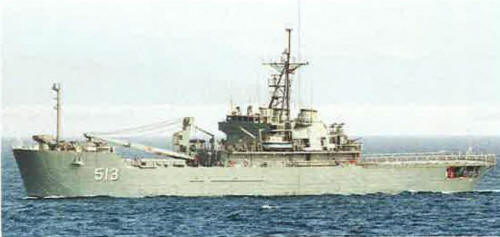

Tonb 2004
