IRANIAN NAVY (IRAN)

AMPHIBIOUS SHIPS AND CRAFT

FOQUE small landing ship (1988-2017)

Name No Yard No Builder Laid down Launched Comp Fate
فقه [Fouque] 101   Nuh-e-Nabi, Bandar-Abbas   17.6.1988 1988 IRGC, in service (2019)
قشم [Qeshm] 504   Nuh-e-Nabi, Bandar-Abbas   9.1995 1995 IRGC, in service (2019)
هرمز [Hormuz] 505   Nuh-e-Nabi, Bandar-Abbas   9.1995 1995 IRGC, in service (2019)
فرور [Forur] 506   Nuh-e-Nabi, Bandar-Abbas     2015-17 IRGC, in service (2019)
  507   Nuh-e-Nabi, Bandar-Abbas     2015-17 IRGC, in service (2019)
  508   Nuh-e-Nabi, Bandar-Abbas     2015-17 IRGC, in service (2019)



Displacement standard, t

250

Displacement full, t

300

Length, m

32.0 pp 37.0 oa

Breadth, m

8.00

Draught, m

1.50

No of shafts

2

Machinery

2 MWM TBD234 V8 diesels

Power, h. p.

490

Max speed, kts

10

Fuel, t

diesel oil

Endurance, nm(kts) 400(10)

Armament

none

Electronic equipment

radar
Military load

100 t cargo

Complement

10

Project history: Ordered by merchant fleet but commissioned by IRGC.

Modernizations: None.

Naval service: No significant events.

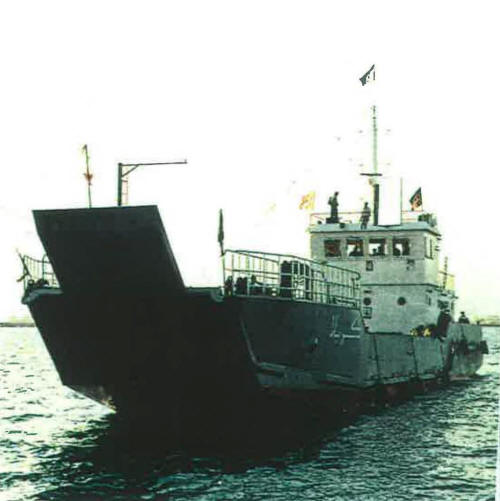

1994

© Ivan Gogin, 2019
