Karkass 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| شاهرخ [Shahrokh] | CNR, Palermo, Italy | 1930 | 26.7.1931 | 1932 | captured by United Kingdom 25.8.1941 (Indian Nilam), returned 1946, discarded 1953 | ||
| شَهباز [Shahbaz] | OCP, Naples, Italy | 1930 | 12.9.1931 | 1932 | captured by United Kingdom 25.8.1941 (Indian Hira), returned 1946, discarded 1953 | ||
| كركس [Karkass] | CNR, Palermo, Italy | 1930 | 24.8.1931 | 1932 | captured by United Kingdom 25.8.1941 (Indian Moti), returned 1946, discarded 1946 | ||
| سیمرغ [Simurgh] | CNR, Palermo, Italy | 1930 | 3.8.1931 | 1932 | captured by United Kingdom 25.8.1941 (Indian Lal), returned 1946, discarded 1953 |
|
Displacement standard, t |
331 |
|
Displacement full, t |
~360 |
|
Length, m |
51.8 pp |
|
Breadth, m |
6.70 |
|
Draught, m |
1.83 |
|
No of shafts |
2 |
|
Machinery |
2 Fiat diesels |
|
Power, h. p. |
900 |
|
Max speed, kts |
15.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 3000(8) |
|
Armament |
2 x 1 - 76/40 Ansaldo 1917, 2 x 1 - 37/27 Maxim-Nordenfelt |
|
Complement |
Project history: Small ships intended for coastal patrol service. Both 76mm guns were placed on a forecastle.
Modernizations: 1946, all (as rearmed in the RIM service): were armed with 1 x 1 - 76/40 HA/LA Mk IX, 1 x 1 - 20/70 Mk III
Naval service: Chahrokh and Simorgh 25.8.1941 were captured by boarding groups from Australian sloop Yarra at Khorramshahr, Chahbaaz and Karkass this day were captured by boarding groups from Indian sloop Lawrence at Bandar-Shapur. Subsequently all four were commissioned by RIM as Hira, Nilam, Moti and Lai and were used as training and patrol ships at Bombay. They were returned to Iran in 1946 and received former names.

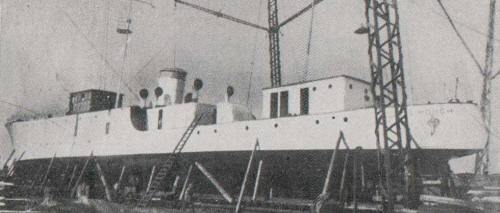

Simurgh 1931
