Names |
10 units |
|
Builders |
North Korea or Iran: 10 units |
|
Commissioned |
2002-2006: 10 units |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service IRGC (2019): 10 units |
|
Displacement standard, t |
29 |
|
Displacement full, t |
30 |
|
Length, m |
21.1 |
|
Breadth, m |
5.80 |
|
Draught, m |
1.00 |
|
No of shafts |
3 |
|
Machinery |
3 diesels |
|
Power, h. p. |
3600 |
|
Max speed, kts |
52 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
1 x 1 - 12.7/90, 2 - 533 TT |
|
Electronic equipment |
radar |
|
Complement |
6 |
Project history: IPS18 project, two first boats were delivered from North Korea 8.12.2002, some units were built in Iran. Torpedoes can be replaced by SSMs.
Modernizations: None.
Naval service: No significant events.

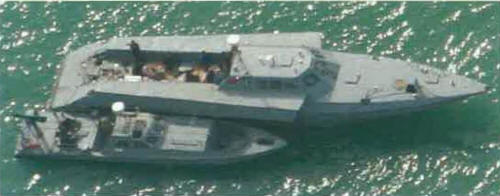

'Tir" (larger) and 'Boghammar' (smaller) 2006
