semi-sister ship Kaman 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| پیکان [Peykan] | 224 |
Shanid Tamjidi SY, Bandar Anzali |
29.9.2003 | 2004 | in service (2019) | ||
| جوشن [Joshan] | 225 |
Shanid Tamjidi SY, Bandar Anzali |
2005 | 20.9.2006 | in service (2019) | ||
| درفش [Derafsh] | 233 |
Shanid Tamjidi SY, Bandar Anzali |
27.11.2008 | 29.9.2009 | in service (2019) | ||
| سپر [Separ] | 234 |
Shanid Tamjidi SY, Bandar Anzali |
28.11.2012 | 2017 | in service (2019) | ||
| 235 |
Shanid Tamjidi SY, Bandar Anzali |
2018 | 2019 | building (2019) | |||
| 236 |
Shanid Tamjidi SY, Bandar Anzali |
2020 | 2021 | building (2019) | |||
| 237 |
Bandar Abbas SY |
2022 | 2023 | building (2019) | |||
| 238 |
Bandar Abbas SY |
2024 | 2025 | building (2019) | |||
| 239 |
Bandar Abbas SY |
2026 | 2027 | building (2019) |
|
Displacement standard, t |
249 |
|
Displacement full, t |
275 |
|
Length, m |
47.0 |
|
Breadth, m |
7.10 |
|
Draught, m |
1.90 |
|
No of shafts |
4 |
|
Machinery |
4 MTU 16V538 TB91 diesels |
|
Power, h. p. |
14400 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil 41 |
| Endurance, nm(kts) | 700(34) |
|
Armament |
2 x 2 Noor SSM (4 C-802), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90 |
| Electronic equipment | Decca 1226, WM-28 radars, TMV-433 ECM suite |
|
Complement |
31 |
Project history: Sina 1 project, repetition of 1970s-built Kaman class of French Combattante II design.
Modernizations: None.
Naval service: No significant events.

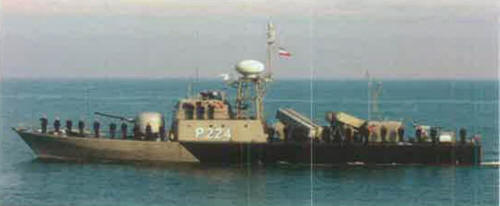

Peykan 2008
© Ivan Gogin, 2019
