Peykaap III 2010
|
Names |
Peykaap II: 30 units Peykaap III: 20 units |
|
Builders |
Iran: 50 units |
|
Commissioned |
Peykaap II: 2002-2016: 30 units Peykaap III: 2012-2020: 20 units |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service IRGC (2019): 30 Peykaap II, ~18 Peykaap III Building (2019): some Peykaap III |
|
Displacement standard, t |
14 |
|
Displacement full, t |
|
|
Length, m |
17.3 |
|
Breadth, m |
3.75 |
|
Draught, m |
0.70 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2400 |
|
Max speed, kts |
52 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
Peykaap II: 2 x 1 C-701 (mostly) or FL-10 or C-704 Nasr SSM (2 C-701 or 2 FL-10 or 2 C-704), 2 - 324 TT Peykaap III: 2 x 1 C-701 (mostly) or FL-10 or C-704 Nasr SSM (2 C-701 or 2 FL-10 or 2 C-704), 2 x 1 - 12.7/90 |
|
Electronic equipment |
radar |
|
Complement |
Project history: Slightly larger version of North Korean Peykaap (IPS16) class, armed with SSMs in addition to torpedoes, 3rd version has MGs instead of torpedoes.
Modernizations: None.
Naval service: No significant events.

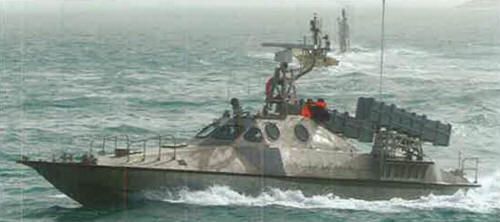

Peykaap II 2009

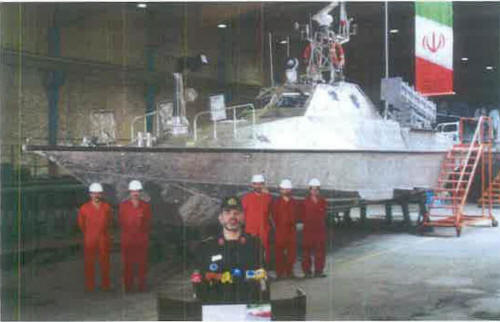

Peykaap III 2010
© Ivan Gogin, 2019
