Parvin 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
برفن [Parvin] |
PGM65, 1976- 211 |
Peterson Builders, Sturgeon Bay, USA |
|
21.8.1967 |
11/1967 |
in service (2019) |
|
| بهرم [Bahram] | PGM66, 1976- 211 |
Peterson Builders, Sturgeon Bay, USA |
1.7.1968 | 4.1969 |
in service (2019) |
||
| نهد [Nahid] | PGM67, 1976- 211 |
Peterson Builders, Sturgeon Bay, USA |
1970 |
in service (2019) |
|
Displacement standard, t |
105 |
|
Displacement full, t |
146 |
|
Length, m |
30.8 |
|
Breadth, m |
6.45 |
|
Draught, m |
2.30 |
|
No of shafts |
2 |
|
Machinery |
8 General Motors 6-71 diesels |
|
Power, h. p. |
2120 |
|
Max speed, kts |
17 |
|
Fuel, t |
diesel oil 16 |
| Endurance, nm(kts) | 1500(10) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 4 DCR (8) |
| Electronic equipment | Decca 303 radar, SQS-17B sonar |
|
Complement |
20 |
Project history: US PGM71 class, built under MDAP.
Modernizations: early 1970s, all: - 2 x 4 - 178 Mousetrap ASWRL, 2 DCR
1990s, all: - 2 x 1 - 20/70; + 1 x 1 - 20/90 GAM-B01
2010s, all: - 1 x 1 - 40/60; + 2 x 1 C-704 SSM (2 C-704)
Naval service: No significant events.

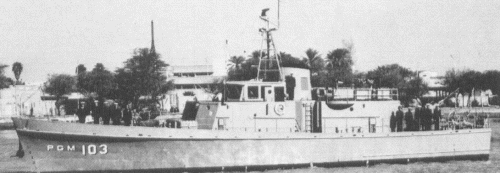

Parvin before transfer

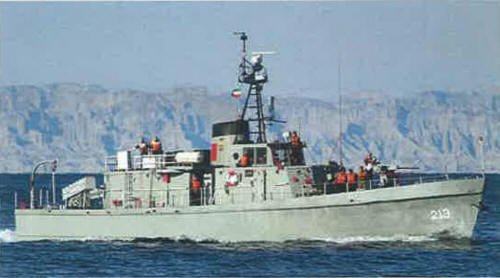

Nahid 2012
