M1 2010
|
Names |
611-614 M1-8 6 units |
|
Builders |
China: 611-614, M1-8, 6 units |
|
Commissioned |
2001: 611-616, M1-8, 6 units |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service Navy (2019): 6 units in service IRGC (2019): 611-614, M1-8 |
|
Displacement standard, t |
17 |
|
Displacement full, t |
19 |
|
Length, m |
13.8 |
|
Breadth, m |
4.80 |
|
Draught, m |
0.70 |
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
2300 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
611-616: 1 x 1 - 20/90 GAM-B01, 1 x 1 - 12.7/90, 1 x 12 - 122 Grad RL or 2 x 8 - 107 BM-16 RL M1-8: 2 x 2 Nasr SSM (4 C-701), 1 x 2- 23/87 ZU-23-2 |
|
Electronic equipment |
611-616: radar M1-8: radar, OT-3 e/o director |
|
Complement |
10 |
Project history: C-14 (China Cat) class. Catamaran hull.
Modernizations: None.
Naval service: No significant events.

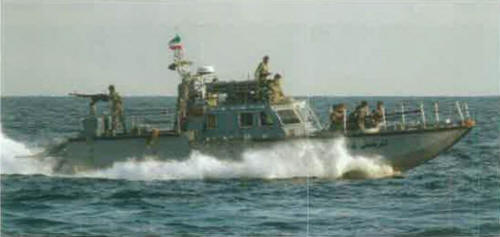

MRL variant 2009

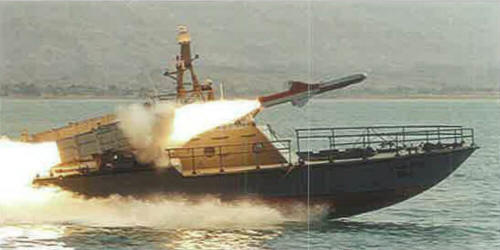

missile variant 2010
