Keyvan 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
كيفن [Keyvan] |
PC61, 1976- 201 |
USCG Yd, Curtis Bay, USA |
|
1.1956 |
in service (2019) |
||
| مهرن [Mehran] | PC62, 1976- 203 |
USCG Yd, Curtis Bay, USA |
1959 |
in service (2019) |
|||
| ترن [Tiran], 1985- أزدي [Azadi] | PC63, 1976- 202 |
USCG Yd, Curtis Bay, USA |
1957 |
in service (2019) |
|||
| مهن [Mahan] | PC64, 1976- 204 |
USCG Yd, Curtis Bay, USA |
1959 | sunk 1980/81 |
|
Displacement standard, t |
85 |
|
Displacement full, t |
107 |
|
Length, m |
29.0 |
|
Breadth, m |
6.20 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
4 Cummins VT-12-M700 diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 1500(15) |
|
Armament |
1 x 1 - 40/60 Mk 3, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCR (8) |
| Electronic equipment | radar, sonar |
|
Complement |
15 |
Project history: US 95ft Coast Guard cutters, built for Iran under MDAP.
Modernizations: 1980, all: - 2 x 4 - 178 Mousetrap ASWRL, 2 DCR; + 1 x 2 - 23/87 ZU-23-2, 2 x 1 - 12.7/90
late 2010s, all survived: - 1 x 2 - 23/87; + 2 x 1 C-704 SSM (2 C-704), 1 x 1 - 20/90 GAM-B01
Naval service: No significant events.

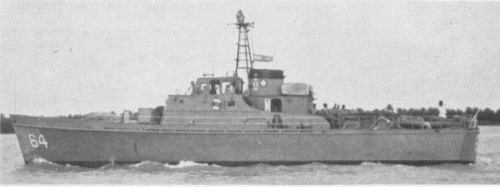

Mahan 1975
