Names |
3 units |
|
Builders |
North Korea: 3 units |
|
Commissioned |
2002: 3 units |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service IRGC (2019): 3 units |
|
Displacement standard, t |
22 |
|
Displacement full, t |
30 |
|
Length, m |
17.0 |
|
Breadth, m |
3.30 |
|
Draught, m |
|
|
No of shafts |
2 |
|
Machinery |
2 diesels |
|
Power, h. p. |
|
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
2 - 324 TT |
|
Electronic equipment |
radar |
|
Complement |
4 + 4 combat swimmers |

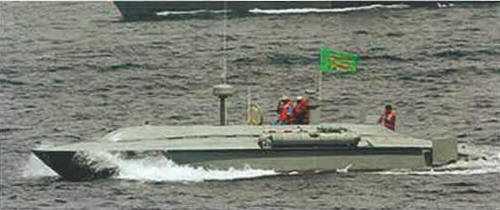

Project history: Concept of operations is likely a high speed surface approach to a target before submerging to a depth of about 3m to conduct the attack phase using a short mast. Two were delivered from North Korea 8.12.2002. 'Taedong-B' or 'Zolfiqar' project.
Modernizations: None.
Naval service: No significant events.
2006
