Names |
آذربایجان [Azerbaijan], 1946- بابلسر [Babolsar] گیلانی [Gilani], 1946- گرگان [Gorgan] مازندران [Mazandaran], 1946- سفیدرود [Sefid-Rud] |
|
Builders |
CNR, Palermo, Italy: Azerbaijan, Gilani, Mazandaran |
|
Commissioned |
1933: Azerbaijan, Gilani, Mazandaran 1946: Babolsar (2nd time), Gorgan (2nd time), Sefid-Rud (2nd time) |
|
Losses |
Azerbaijan (27.8.1941 Soviet СКА-1 [SKA-1]), Gilani (27.8.1941 Soviet СКА-2 [SKA-2]), Mazandaran (27.8.1941 Soviet СКА-3 [SKA-3]) |
|
Transfers |
none |
|
Discarding |
1972: Babolsar, Gorgan, Sefid-Rud |
|
Displacement standard, t |
28 |
|
Displacement full, t |
32 |
|
Length, m |
20.9 |
|
Breadth, m |
3.81 |
|
Draught, m |
1.07 |
|
No of shafts |
2 |
|
Machinery |
2 Krupp diesels |
|
Power, h. p. |
300 |
|
Max speed, kts |
14 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 680(10) |
|
Armament |
1 x 1 - 47/40 L/44 (Škoda) |
|
Complement |
15 |

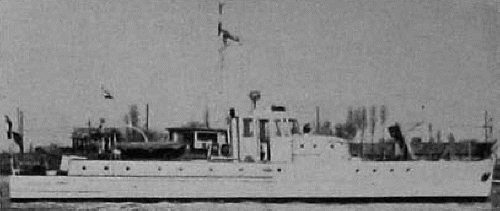

Project history: Built for service on Caspian sea. Round-bilge hull, boats had light bulletproof armour. Boats were supplied to Khorramshahr in November, 1932, whence transported to Caspian sea overland where they were ultimately completed at Bandar-Pehlevi in 1933. They served as a prototype for ordered in Italy motor boats of Azar class in 1955.
Modernizations: 1946, as rearmed in Soviet service, all were armed with 1 x 1 - 45/46 21K, 1 x 1 - 12.7/78
Naval service: 27.8.1941 all were captured at Bandar-Pehlevi by Soviet troops and 23.9.1941 were commissioned by Soviet Navy as SKA-1-3, since 22.11.1941 SKA-200-202, in 1946 they were returned to Iran and commissioned again on Caspian sea.
1951
