Tjakra 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Tjakra (ex-S-79) | S01, later- 401, later- 511 | 444 Marti Yd, Nikolayev, USSR | 18.7.1953 | 31.12.1953 | 30.5.1954 // 12.9.1959 | stricken 1972 | |
| Nanggala (ex-S-91) | S02, later- 402 | 444 Marti Yd, Nikolayev, USSR | 27.10.1953 | 23.12.1953 | 28.8.1954 // 12.9.1959 | stricken 1972 | |
| Nagabanda (ex-S-218) | 403 | 444 Marti Yd, Nikolayev, USSR | 28.2.1954 | 24.5.1954 | 17.3.1955 // 3.1962 | stricken 1976 | |
| Trisula (ex-S-235) | 404 | 444 Nosenko Yd, Nikolayev, USSR | 31.3.1955 | 4.6.1955 | 8.2.1956 // 12.1962 | stricken 1974 | |
| Nagarangsang (ex-S-219) | 405 | 444 Marti Yd, Nikolayev, USSR | 25.3.1954 | 10.12.1954 | 30.4.1955 // 3.1962 | stricken 1974 | |
| Tjandrasa (ex-S-391) | 406 | 199 Yd, Komsomolsk-on-Amur, USSR | 28.12.1955 | 30.6.1956 | 31.11.1956 // 12.1962 | stricken 1974 | |
| Alugoro (ex-S-225) | 407, later- 512 | 444 Marti Yd, Nikolayev, USSR | 29.5.1954 | 16.3.1955 | 16.7.1955 // 3.1962 | stricken 1974 | |
| Tjundamani (ex-S-292) | 408 | 142 | 112 Zhdanov Yd, Gorkiy, USSR | 10.5.1955 | 29.9.1955 | 31.3.1956 // 11.1962 | stricken 1974 |
| Wijajadanu (ex-S-239) | 409 | 444 Nosenko Yd, Nikolayev, USSR | 29.6.1955 | 14.12.1955 | 24.5.1956 // 12.1962 | stricken 1974 | |
| Pasopati (ex-S-290) | 410 | 141 | 112 Zhdanov Yd, Gorkiy, USSR | 15.4.1955 | 13.9.1955 | 3.2.1956 // 15.12.1962 | stricken 11.1990 |
| Hendradjala (ex-S-223) | 411 | 444 Marti Yd, Nikolayev, USSR | 10.6.1954 | 4.8.1954 | 30.6.1955 // 3.1962 | stricken 1974 | |
| Bramastra (ex-S-236) | 412 | 444 Nosenko Yd, Nikolayev, USSR | 16.4.1955 | 30.9.1955 | 8.2.1956 // 12.1962 | stricken 1981 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1045 / 1342 |
|
Length, m |
76.0 |
|
Breadth, m |
6.30 |
|
Draught, m |
4.55 |
|
No of shafts |
2 |
|
Machinery |
2 37D diesels / 2 PG-101 electric motors |
|
Power, h. p. |
4000 / 2700 |
|
Max speed, kts |
18.3 / 13.1 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8580(10) / 353(2) |
|
Armament |
6 - 533 TT (4 bow, 2 stern, 12 or 22 mines) |
|
Electronic equipment |
Flag radar, Tamir-5L, Feniks sonars, Nakat ECM suite |
|
Complement |
55 |
|
Diving depth operational, m |
170 |
Project history: Former Soviet medium submarines of Project 613. Pasopati and Bramastra have been refitted and have received new batteries from UK.
Modernizations: None.
Naval service: No significant events.

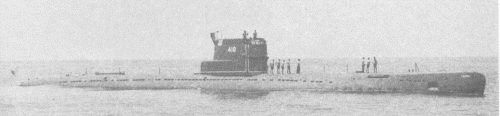

Pasopati 1978
Many thanks to Wolfgang Stöhr for additional information on this page
