Pulau Rengat 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Pulau Rengat | 711 | Van der Giessen de Noord, Alblasserdam, Netherlands | 29.3.1985 | 23.7.1987 | 26.3.1988 | in service (2019) | |
| Pulau Rupat | 712 | Van der Giessen de Noord, Alblasserdam, Netherlands | 22.7.1985 | 27.8.1987 | 14.10.1988 | in service (2019) |
|
Displacement standard, t |
510 |
|
Displacement normal, t |
588 |
|
Length, m |
47.1 pp 51.5 oa |
|
Breadth, m |
8.90 |
|
Draught, m |
2.47 hull 3.50 max |
|
No of shafts |
2 + 2 Schottel active rudders |
|
Machinery |
2 MTU 12V396 TC Db51 diesels + 2 electric motors |
|
Power, h. p. |
2400 + 240 |
|
Max speed, kts |
15.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
3000(12) |
|
Armament |
2 x 1 - 20/85 S.20, 2x PAP-104 Mk 5 USV, OD-3 mechanical, F-82 magnetic, AS203 acoustic minesweeping gear |
|
Electronic equipment |
Decca 1229 radar, TSM2022 sonar, SEWACO-RI CCS |
|
Complement |
45 |
Project history: New ships ordered on 29 March 1985 as Vlaardingen and Willemstad of Tripartite series from the shipyard and taken from Royal Netherlands Navy production. Carry two PAP 104 Mk 5 remote-controlled submersibles. GRP construction.
Modernizations: None.
Naval service: No significant events.

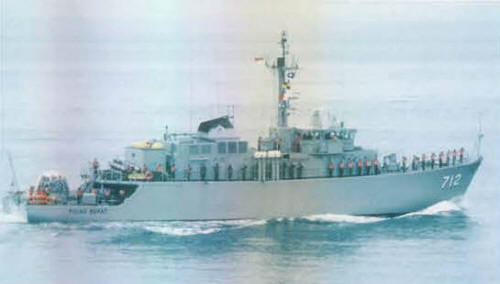

Pulau Rupat 2004
