Pulau Roon 1965

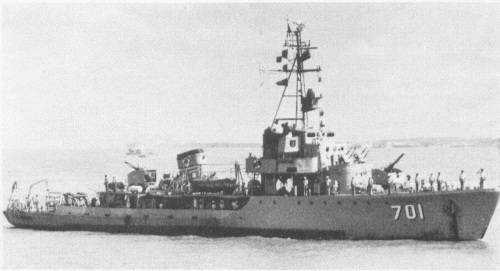

Pulau Rani 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 254K | |||||||
| Pulau Roon (ex-T-100, ex-T-816) | 703 | 38 | 532 Yd, Kerch', USSR | 18.9.1954 | 5.1.1955 | 31.3.1955 // 1.1963 | deleted 1979 |
| Pulau Rorbas (ex-T-101, ex-T-823) | 704 | 51 | 532 Yd, Kerch', USSR | 28.2.1955 | 14.7.1955 | 30.9.1955 // 1.1963 | deleted 1983 |
| Pulau Radja (ex-T-102, ex-T-824) | 705 | 56 | 532 Yd, Kerch', USSR | 18.3.1955 | 8.8.1955 | 30.10.1955 // 1.1963 | deleted 1983 |
| Pulau Rondo (ex-T-103, ex-T-826) | 706 | 59 | 532 Yd, Kerch', USSR | 7.5.1955 | 24.9.1955 | 30.11.1955 // 1.1963 | deleted 1976 |
| Project 254M | |||||||
| Pulau Rani (ex-T-105, ex-T-507) | 701 | 914 | 363 Yd, Pontonnyy, USSR | 26.7.1954 | 31.12.1954 | 30.6.1955 // 5.1964 | deleted 1988 |
| Pulau Ratevo (ex-T-104, ex-T-508) | 702 | 915 | 363 Yd, Pontonnyy, USSR | 14.8.1954 | 15.1.1955 | 2.8.1955 // 2.1964 | deleted 1988 |
|
Displacement standard, t |
pr. 254K: 510 pr. 254M: 540 |
|
Displacement normal, t |
pr. 254K: 577 pr. 254M: 600 |
|
Length, m |
pr. 254K: 58.0 pr. 254M: 59.1 |
|
Breadth, m |
8.50 |
|
Draught, m |
pr. 254K: 2.28 pr. 254M: 2.33 |
|
No of shafts |
2 |
|
Machinery |
2 9D or 9DM diesels |
|
Power, h. p. |
2200 |
|
Max speed, kts |
pr. 254K: 14 pr. 254M: 14.5 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
pr. 254K: 3200(10) pr. 254M: 3500(10) |
|
Armament |
pr. 254K: 2 x 2 - 37/70 V-11/V-11M, 4 x 2 - 12.7/79, 2 DCT, 2 DCR (22), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MT-2 mechanical, TEM-52 magnetic, 2 BAT-2 acoustic minesweeping gear pr. 254M: 2 x 2 - 37/70 V-11/V-11M, 2 x 2 - 25/80 2M-3M, 2 x 2 - 14.5/89, 2 x 2 - 12.7/79, 2 DCT (10), 16 - 8 mines (8 AMD-1000 or 10 KB-3 or 16 obr. 1908/39), MKT-1 mechanical, TEM-52M magnetic, BGAT acoustic minesweeping gear |
|
Electronic equipment |
pr. 254K: Lin', Rym-K radars, Tamir-10 sonar pr. 254M: Lin', Rym-K radars, Tamir-11 sonar |
|
Complement |
pr. 254K: 68 pr. 254M: 77 |
Project history: Former Soviet ocean minesweepers of Projects 254K and 254M.
Modernizations: None.
Naval service: No significant events.
Pulau Rani 1980
Many thanks to Wolfgang Stöhr for additional information on this page.
