Teluk Langsa 1960
Teluk Bajur 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| Teluk Langsa (ex-Solano County, ex-LST1128) | 1975- 501 | Chicago Bridge, Seneca, USA | 11.1944 | 19.2.1945 | 3.1945 // 7.1970 | deleted 1.2011 | |
| Teluk Bajur (ex-T-LST616, ex-LST616) | 1975- 502 | Chicago Bridge, Seneca, USA | 2.1944 | 12.5.1944 | 5.1944 // 6.1961 | MSC 1983, deleted 4.2012 | |
| Teluk Kau (ex-T-LST652, ex-LST652, ex-LST(H)652, ex-LST652) | 1975- 504 | Chicago Bridge, Seneca | 7.1944 | 19.10.1944 | 11.1944 // 7.1970 | deleted 1.2011 | |
| Teluk Manado (ex-T-LST657, ex-LST657) | 1975- 505 | American Bridge, Pittsburgh, USA | 12.1943 | 25.2.1944 | 4.1944 // 3.1960 | deleted 1983 | |
| Teluk Tomini (ex-Inagua Crest, ex-Brunei, ex-Bledsoe County, ex-LST356) | 1975- 508 | Charleston N Yd, USA | 9.1942 | 16.11.1942 | 12.1942 // 6.1961 | MSC 1983, deleted 1.2011 | |
| Teluk Sindoro (ex-Inagua Shipper, ex-Presque Isle), later- Teluk Ratai | 1975- 509 | American Bridge, Pittsburgh | 4.1944 | 16.6.1944 | 6/1944 // 5.1959 | in service (2019) | |
| Teluk Saleh (ex-Clarke County, ex-LST601) | 1975- 510 | Chicago Bridge, Seneca, USA | 10.1943 | 4.3.1944 | 3.1944 // 6.1961 | deleted 1.2011 | |
| Teluk Bone (ex-Iredell County, ex-LST839) | 1975- 511 | American Bridge, Pittsburgh, USA | 9.1944 | 12.11.1944 | 12.1944 // 6.1961 | in service (2019) | |
| Tandjung Nusanive (ex-Lawrence County, ex-LST887) | 887 | Dravo, Pittsburgh, USA | 8.1944 | 7.10.1944 | 11.1944 // 12.1960 | deleted 1974 | |
| Tandjung Radja (ex-Russell County, ex-LST1090) | American Bridge, Pittsburgh, USA | 12.1944 | 24.2.1945 | 4.1945 // 11.1960 | deleted 1966 |
|
Displacement standard, t |
1653 |
|
Displacement full, t |
4080 |
|
Length, m |
96.3 wl 100.0 oa |
|
Breadth, m |
15.2 |
|
Draught, m |
landing: 1.19 fore, 3.00 aft, sea-going: 2.30 fore, 4.30 aft |
|
No of shafts |
2 |
|
Machinery |
2 General Motors 12-567A diesels |
|
Power, h. p. |
1800 |
|
Max speed, kts |
12.1 |
|
Fuel, t |
diesel oil 590 |
|
Endurance, nm(kts) |
24000 (9) |
|
Armament |
1 x 2 - 40/60 Mk 1, 5 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10 |
|
Military load |
4 LCVP, 20 medium tanks (25-t) or 500t of cargo, 163 marines |
|
Electronic equipment |
501, 504: SO radar 508, 509: SPS-21 radar 510, 511: SPS-53 radar |
|
Complement |
91 - 125 |
Project history: Former USN LST(2) type tank landing ships. Teluk Tomini and Teluk Sindoro were purchased from mercantile service.
Modernizations: late 1970s, Teluk Bajur, Teluk Kau, Teluk Manado, Teluk Tomini, Teluk Ratai, Teluk Saleh, Teluk Bone: - 1 x 2 - 40/60, 5 x 1 - 40/60, 2 x 1 - 20/70; + 4 x 2 - 37/70 V-11
Naval service: No significant events.

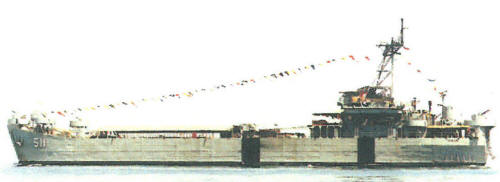

Teluk Bone 1995
