INDONESIAN NAVY (INDONESIA)

AMPHIBIOUS SHIPS AND CRAFT

TELUK KENDARI tank landing ships (2016-)

Name No Yard No Builder Laid down Launched Comp. Fate
Teluk Kendari 518   PT Dok & Perkapalan Kodja Bahari, Persero 2014 2015 2018 in service (2019)
Teluk Kupang 519   PT Dok & Perkapalan Kodja Bahari, Persero 2015 2016 2018 in service (2019)
Teluk Lada 521   PT Daya Radar Utama, Panjang 2016 28.6.2018 2018 in service (2019)
  AT-8   PT Daya Radar Utama, Panjang 2019 2020 2022 ordered (2019)
  AT-9   PT Daya Radar Utama, Panjang 2020 2021 2023 planned (2019)



Displacement standard, t

2350

Displacement full, t

4000

Length, m

117.0

Breadth, m

16.4

Draught, m

7.80

No of shafts

2

Machinery

2 MAN diesels

Power, h. p.

7940

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)

6250(13)

Armament

2 x 1 - 40/70 Bofors 350AFD, helicopter deck

Military load

10 tanks, 361 troops

Electronic equipment

2x radars

Complement

108

Project history: New large class of LSTs of indigenious Indonesian design. Helicopter deck can accommodate two helicopters.

Modernizations: None.

Naval service: No significant events.

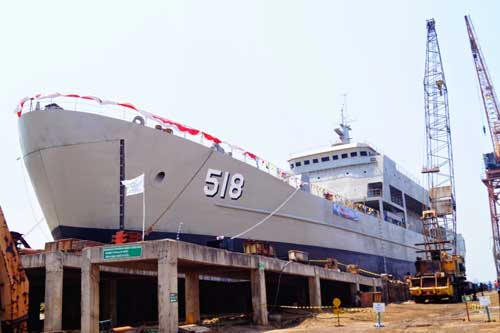

Teluk Kendari 2015
