INDONESIAN NAVY (INDONESIA)

AMPHIBIOUS SHIPS AND CRAFT

TELUK BINTUNI tank landing ships (2015-)

Name No Yard No Builder Laid down Launched Comp. Fate
Teluk Bintuni 520   PT Daya Radar Ulama, Jakarta   2014 17.6.2015 in service (2019)
Teluk Youtefa 522   PT Daya Radar Utama, Jakarta 2017 2018 2019 building (2019)
Teluk Palu 523   PT Daya Radar Utama, Jakarta 2017 2019 2020 building (2019)
Teluk Calang 524   PT Daya Radar Utama, Jakarta 2017 2019 2020 building (2019)



Displacement standard, t



Displacement full, t

6000

Length, m

120.0

Breadth, m

18.0

Draught, m

3.00

No of shafts

2

Machinery

2 diesels

Power, h. p.

8810

Max speed, kts

16

Fuel, t

diesel oil

Endurance, nm(kts)

7200(12)

Armament

1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 2 x 1 - 12.7/90, 1 helicopter (Super Puma)

Military load

4 LCVP, 10 tanks, 350 troops

Electronic equipment

2x radars

Complement

108

Project history: First ordered in December 2012, but 27.9.2014 was returned to builder for defects correction.

Modernizations: None.

Naval service: No significant events.

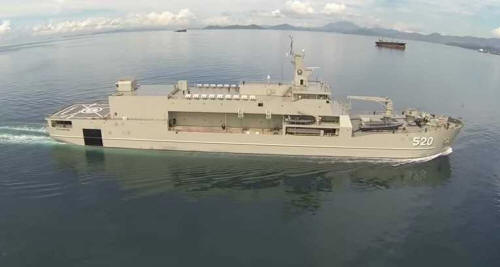

Teluk Bintuni
