Dr. Soeharso 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| Tanjung Dalpele, 8.2007- Dr. Soeharso | 972, 8.2007- 990 | Dae Sun, Pusan, South Korea | 2002 | 19.5.2003 | 21.9.2003 | in service (2019) |
|
Displacement standard, t |
7300 |
|
Displacement full, t |
11300 |
|
Length, m |
109.2 pp 122.0 oa |
|
Breadth, m |
22.0 |
|
Draught, m |
4.90 mean hull |
|
No of shafts |
2 |
|
Machinery |
2 MAN-Burmeister & Wain 8L28/32A diesels |
|
Power, h. p. |
5250 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8600(12) |
|
Armament |
1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 20/85 S.20, 2 helicopters (AS332L Super Puma) |
|
Military load |
2 LCM, 2 LCVP, 14 tanks, 218 troops or 2480 t cargo |
|
Electronic equipment |
2x nav. radars |
|
Complement |
126 |
Project history: Tanjung Dalpele was ordered as hospital ship but serves as command and amphibious ship.
Modernizations: None.
Naval service: No significant events.

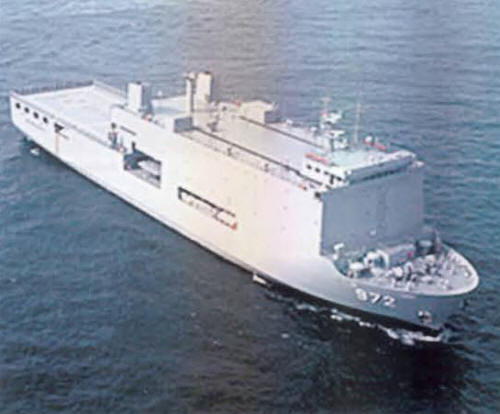

Tanjung Dalpele 2004
