Makassar 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp. | Fate |
| Makassar | 590 | Dae Sun, Pusan, South Korea | 2005 | 7.12.2006 | 29.4.2007 | in service (2019) | |
| Surabaya | 591 | Dae Sun, Pusan, South Korea | 7.12.2006 | 23.3.2007 | 1.8.2007 | in service (2019) | |
| Banjarmasin | 592 | PT PAL, Surabaya | 19.10.2006 | 28.8.2008 | 28.11.2009 | in service (2019) | |
| Banda Aceh | 593 | PT PAL, Surabaya | 7.12.2007 | 19.3.2010 | 21.3.2011 | in service (2019) | |
| Semarang | 594 | PT PAL, Surabaya | 28.8.2017 | 4.8.2018 | 21.1.2019 | in service (2019) |
|
Displacement standard, t |
7800 |
|
Displacement full, t |
11580 |
|
Length, m |
125.0 |
|
Breadth, m |
22.0 |
|
Draught, m |
4.90 mean hull |
|
No of shafts |
2 |
|
Machinery |
2 MAN-Burmeister & Wain 8L28/32A diesels |
|
Power, h. p. |
5250 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
8600(12) |
|
Armament |
590-593: 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 12.7/90, 2 helicopters (AS332L Super Puma) 594: 1 x 1 - 40/70 Bofors 350AFD, 2 x 1 - 12.7/90, 3 helicopters (AS332L Super Puma) |
|
Military load |
590-593: 2 LCM, 2 LCVP, 14 tanks, 518 troops or 2480 t cargo 594: 2 LCM, 2 LCVP, 14 tanks, 645 troops or 2480 t cargo |
|
Electronic equipment |
2x nav. radars |
|
Complement |
126 |
Project history: Modified Tanjung Dalpele, differed by superstructure form, being slightly larger and having 3 landing spots for helicopters. Two latter ships were built mostly as command ships: they have smaller and shorter superstructure and longer flight deck.
Modernizations: None.
Naval service: No significant events.

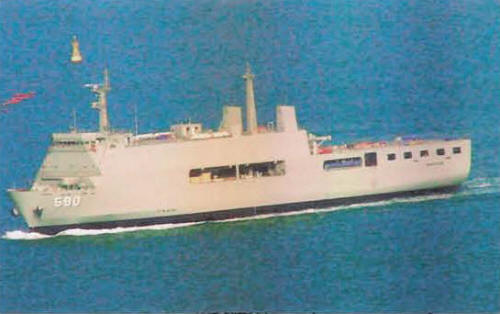

Makassar 2007

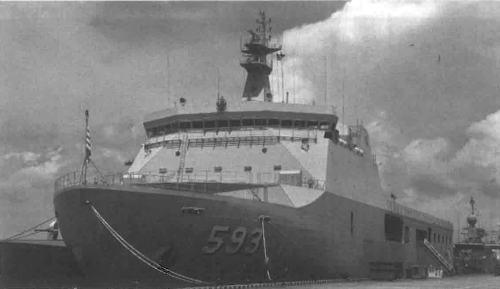

Banda Aceh 2011
