INDONESIAN NAVY (INDONESIA)

NON-NAVAL FORCES

KUJANG patrol craft (1981)

Name No Yard No Builder Laid down Launched Comm Fate
Kujang PAT201   SFCN, Villeneuve-la-Garenne, France 5.1980 17.10.1980 4.1981 in service (2019)
Parang PAT202   SFCN, Villeneuve-la-Garenne, France 7.1980 18.11.1980 4.1981 in service (2019)
Celurit PAT203   SFCN, Villeneuve-la-Garenne, France 9.1980 20.3.1981 8.1981 in service (2019)
Cundrik PAT204   SFCN, Villeneuve-la-Garenne, France 7.9.1980 10.11.1980 10.1981 in service (2019)
Belati PAT205   SFCN, Villeneuve-la-Garenne, France 2.1981 21.5.1981 12.1981 in service (2019)



Displacement standard, t

126

Displacement full, t

156

Length, m

35.5 pp 38.3 oa

Breadth, m

6.00

Draught, m

1.78 hull 2.60 propellers

No of shafts

2

Machinery

2 AGO SACM 195V12 CZSHR diesels

Power, h. p.

4400

Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts) 1500(18)

Armament

1 x 1 - 20/90 GAM-B01 or 1 x 1 - 12.7/90

Electronic equipment

radar
Complement 18

Project history: Patrol craft also equipped for SAR duties.

Modernizations: None.

Naval service: No significant events.

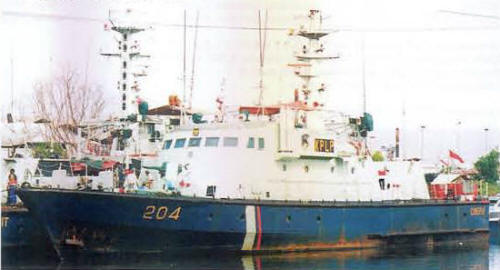

Cundrik 1998
